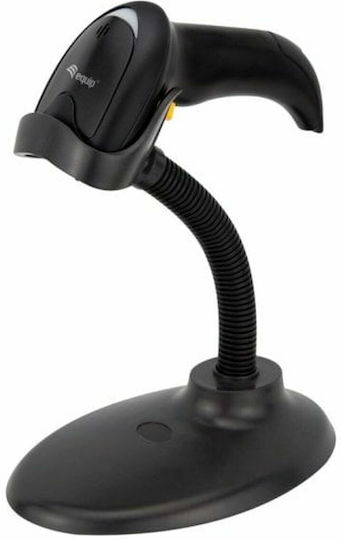

The Equip 351021 handheld barcode scanner reads 1D and 2D codes, including QR codes, using an LED sensor. It connects via USB and supports manual, continuous, and automatic scanning at a speed of 220 scans per second. The package includes a stand for hands-free operation.
- Type: Handheld
- Scanning technology: Area Imager (2D)
- Code types: 1D and 2D
- Sensor: LED
- Connection: USB
- Cable length: 1.8 m
- Scanning speed: 220 scans per second
- Scanning distance: Up to 1500 mm
- 1D resolution: ≥ 4 mil
- 2D resolution: ≥ 5 mil
- Roll scanning angle: 360°
- Pitch scanning angle: ±30°
- Skew scanning angle: ±35°
- Supported 1D codes: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, Code11, MSI-Plessey, Plessey
- Supported 2D codes: PDF417, QR Code, Data Matrix
- Color: Black
- Housing material: ABS
- Protection rating: IP54
- Power supply: USB DC 5 V / 100 mA
- Dimensions: 70 x 79 x 173 mm
- Weight: 102 g
- Operating humidity: 5% RH–95% RH
- Operating temperature: -10 °C–50 °C
- Supported systems: WIN XP/7/8/9/10, Android, iOS, Linux

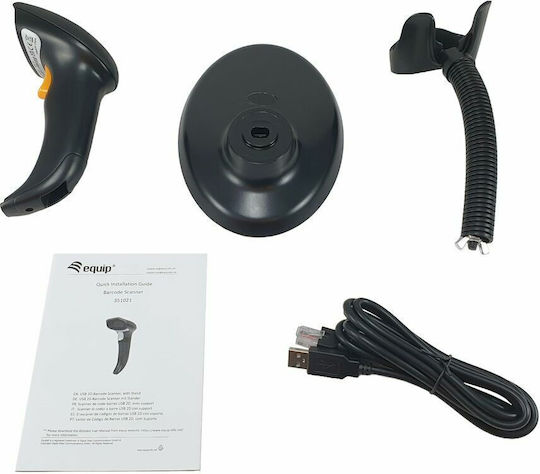

- Package contents: Scanner, quick installation guide, stand
- Product Number
- 351021
- Connectivity
- Wireless
- Scanner Type
- Handheld Scanner
- Readability
- Area Imager (2D)
- Connection Type
- USB
