F&F Adjustable Day / Night Photocell 2-1000 Lux 10A IP65
Day / Night Photocells

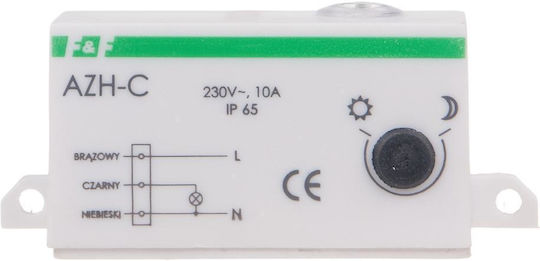

F&F Adjustable Day / Night Photocell 2-1000 Lux 10A IP65

Twilight Mechanism 10A 230V

  • Type: Twilight mechanism with photo-sensitive sensor
  • Use: Automatic activation of street lighting, square lighting, exhibitions, advertisements, etc. at sunset and...

Twilight Mechanism 10A 230V

  • Type: Twilight mechanism with photo-sensitive sensor
  • Use: Automatic activation of street lighting, square lighting, exhibitions, advertisements, etc. at sunset and deactivation at dawn
  • Power Supply: 230V AC
  • Load Current:
  • Action Limit: Adjustable: 21000 Lx
  • Set Action Limit: Approximately 7 Lx
  • Hysteresis: Approximately 15 Lx
  • ...
See full description See full description

  • Current Capacity

    Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.

  • Brightness Lux

    Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

    At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

    At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.

  • Adjustable

    With a switch that allows the lux value to be set to the desired level.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.

  • Operating Voltage

    It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
  • See all
Review the product
Product report

Description

Description

Twilight Mechanism 10A 230V

  • Type: Twilight mechanism with photo-sensitive sensor
  • Use: Automatic activation of street lighting, square lighting, exhibitions, advertisements, etc. at sunset and deactivation at dawn
  • Power Supply: 230V AC
  • Load Current:
  • Action Limit: Adjustable: 2÷1000 Lx
  • Set Action Limit: Approximately 7 Lx
  • Hysteresis: Approximately 15 Lx
  • Activation Delay: 1÷15 seconds
  • Delay: 10÷30 seconds
  • Power Consumption: 0.56 W
  • Protection Rating: IP65
  • Connection: OMY 3 x 0.75 mm2, I = 0.5m
  • Operating Temperature: -25÷50°C
  • Dimensions: 81 x 33 x 25mm
  • Installation: Surface, with two screws on the ground

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Current Capacity
10 A

Current Capacity

Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.
Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.
Operating Voltage
230V

Operating Voltage

It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
Brightness Lux
2-1000 Lux

Brightness Lux

Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.
Adjustable
Yes

Adjustable

With a switch that allows the lux value to be set to the desired level.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Twilight Mechanism 10A 230V

  • Type: Twilight mechanism with photo-sensitive sensor
  • Use: Automatic activation of street lighting, square lighting, exhibitions, advertisements, etc. at sunset and deactivation at dawn
  • Power Supply: 230V AC
  • Load Current:
  • Action Limit: Adjustable: 2÷1000 Lx
  • Set Action Limit: Approximately 7 Lx
  • Hysteresis: Approximately 15 Lx
  • Activation Delay: 1÷15 seconds
  • Delay: 10÷30 seconds
  • Power Consumption: 0.56 W
  • Protection Rating: IP65
  • Connection: OMY 3 x 0.75 mm2, I = 0.5m
  • Operating Temperature: -25÷50°C
  • Dimensions: 81 x 33 x 25mm
  • Installation: Surface, with two screws on the ground

Manufacturer

Manufacturer Details

Warnings & Safety Information
Current Capacity
10 A

Current Capacity

Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.
Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.
Operating Voltage
230V

Operating Voltage

It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
Brightness Lux
2-1000 Lux

Brightness Lux

Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.
Adjustable
Yes

Adjustable

With a switch that allows the lux value to be set to the desired level.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
