Hensel Wall mounted Waterproof 3-Elements Fuse Box with 1 Row
Fuse Box

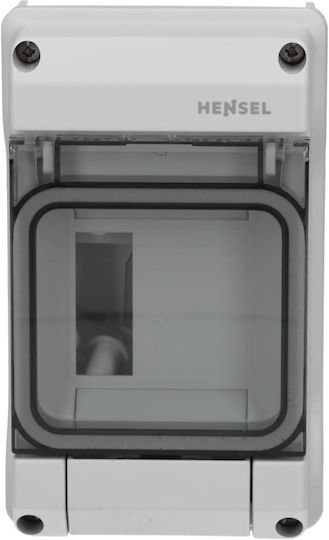

Hensel Wall mounted Waterproof 3-Elements Fuse Box with 1 Row Code: 6100055

Modular distribution board 1 x 3 surface-mounted IP65 KV 9103 (6100055)

  • 3 units: 1 x 3 x 18 mm
  • 1 rail for each of the dynamic PE and N (number x cross-section) 1 x 25 mm², 4 x 4 mm², Cu
  • FIXCONNECT...

Modular distribution board 1 x 3 surface-mounted IP65 KV 9103 (6100055)

  • 3 units: 1 x 3 x 18 mm
  • 1 rail for each of the dynamic PE and N (number x cross-section) 1 x 25 mm², 4 x 4 mm², Cu
  • FIXCONNECT screwless terminals
  • Installation details for devices mounted on a 35 mm support rail with transparent doors
  • Door lock and sealing kit
  • Cable entry cover with...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Modular distribution board 1 x 3 surface-mounted IP65 KV 9103 (6100055)

  • 3 units: 1 x 3 x 18 mm
  • 1 rail for each of the dynamic PE and N (number x cross-section) 1 x 25 mm², 4 x 4 mm², Cu
  • FIXCONNECT® screwless terminals
  • Installation details for devices mounted on a 35 mm support rail with transparent doors
  • Door lock and sealing kit
  • Cable entry cover with opening for unlocking devices with flexible membranes for cable entry
  • Protection degree: IP 65
  • Color: grey, RAL 7035
  • Rated insulation voltage Ui = 400 V a.c.
  • Maximum consumed power Pde = 10 W according to PN 60670-24
  • Protection category: II
  • Material: thermoplastic PS-polystyrene
  • Dimensions: Width 102 mm, Height 197 mm, Depth 92 mm
  • Weight: 0.414 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
6100055

Specifications

Placement
Wall mounted
Number of Rows
1
Number of Elements per Row
3
Colour
Transparent
Protection Certification
IP65

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
102 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Modular distribution board 1 x 3 surface-mounted IP65 KV 9103 (6100055)

  • 3 units: 1 x 3 x 18 mm
  • 1 rail for each of the dynamic PE and N (number x cross-section) 1 x 25 mm², 4 x 4 mm², Cu
  • FIXCONNECT® screwless terminals
  • Installation details for devices mounted on a 35 mm support rail with transparent doors
  • Door lock and sealing kit
  • Cable entry cover with opening for unlocking devices with flexible membranes for cable entry
  • Protection degree: IP 65
  • Color: grey, RAL 7035
  • Rated insulation voltage Ui = 400 V a.c.
  • Maximum consumed power Pde = 10 W according to PN 60670-24
  • Protection category: II
  • Material: thermoplastic PS-polystyrene
  • Dimensions: Width 102 mm, Height 197 mm, Depth 92 mm
  • Weight: 0.414 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
6100055

Specifications

Placement
Wall mounted
Number of Rows
1
Number of Elements per Row
3
Colour
Transparent
Protection Certification
IP65

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
102 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
