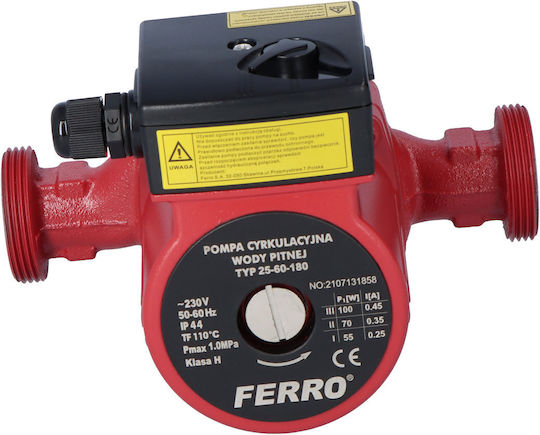

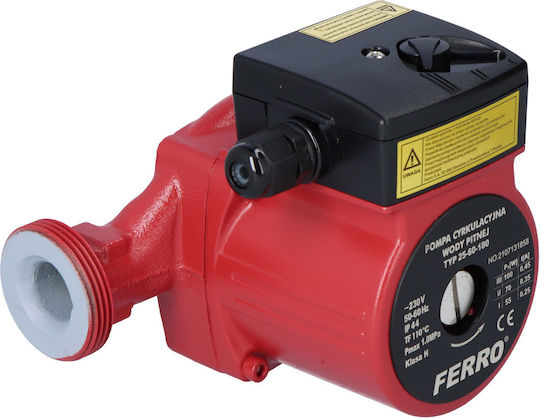

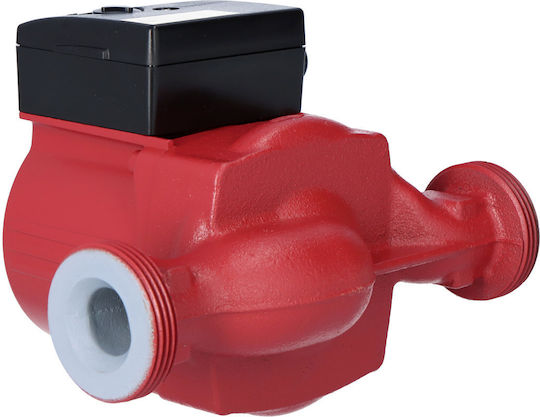

Ferro Electronic Circulator Pump Heating 180mm Code: 0202W

Name: Ferro Electronic Circulator Pump Heating 180mm
Brand: Ferro
SKU: 53446507
Price: 90.76 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Circulator Pump 25-60 180 (0202W)

The Weberman pump is intended for central heating systems. The pump body is made of cast iron, the casing from cast aluminum, and the impeller from plastic.

It...

Circulator Pump 25-60 180 (0202W)

The Weberman pump is intended for central heating systems. The pump body is made of cast iron, the casing from cast aluminum, and the impeller from plastic.

It features a bipolar, asynchronous motor with three adjustable rotational speeds via a special switch. The device complies with European standards EN 60335-1 and EN...

See full description See full description

90 76 €

Delivery Thu, 25 Jun - Wed, 01 Jul

14,00 € shipping cost

Sent from Greece

From Getters 4.4 (100)

4.4 (100 reviews)

Greece

5+ pieces

See Central Heating on the page of Getters

Description

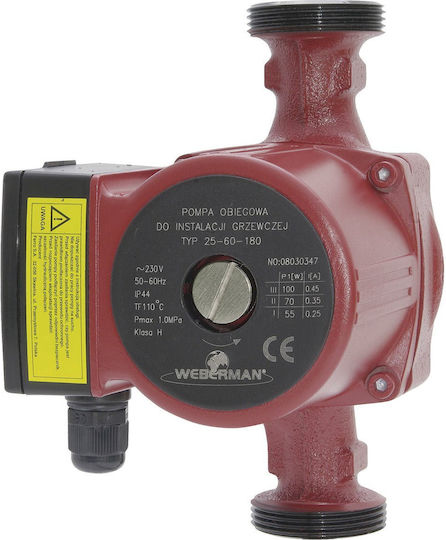

Circulator Pump 25-60 180 (0202W)

The Weberman pump is intended for central heating systems. The pump body is made of cast iron, the casing from cast aluminum, and the impeller from plastic.

It features a bipolar, asynchronous motor with three adjustable rotational speeds via a special switch. The device complies with European standards EN 60335-1 and EN 60335-2-51.

Technical specifications:

Model: 25-60 180
Operating range: 0.2 - 4.5 m³/h
Lift height: max. 5.5 m
Fluid temperature: min. +2°C, max. +110°C
Type of pumped fluid: clean, without solids and mineral oils, non-viscous
Maximum pressure: 10 bar
Protection class: IP 44
Insulation class: H
Cable gland: PG 11
Installation: with the shaft axis in a horizontal position
Voltage: 50-60 Hz, ~230V
Power consumption (I,II,III): 55/70/100 W
Connection distance: 180 mm
Connection: 1 1/2"
Ambient temperature: min. +2°C, max. +40°C

Manufacturer

Ferro - Circulator Pumps Ferro

See full description

Specifications

Product Number: 0202W

Product Details

Electronic: Yes

Application: Heating

Maximum Pressure Head (m): 5.5 m

Dimensions

Connection Diameter: -

Length: 180 mm
