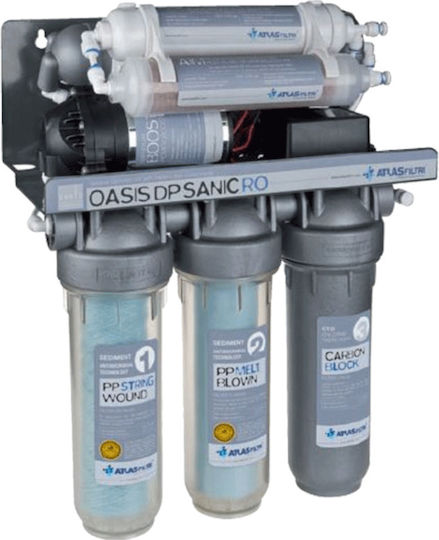

The Atlas Filtri reverse osmosis system purifies water in 6 stages and features a 50 GPD membrane, equivalent to 190 litres per day. It operates on a 220/230 V power supply and has a voltage of 24 V, a current of 0.9 A and a power rating of 17 W.

For operation, the inlet pressure ranges from 3 to 8 bar for the STD model and has a minimum value of 1 bar for the PUMP model. The maximum outlet pressure is 8 bar, while the operating temperature ranges from 4 to 45 °C.

• Filtration stages: 6
• Membrane output: 50 GPD (190 litres/day)
• pH: 6.5–9.5
• Maximum inlet pressure (STD): 8 bar
• Minimum inlet pressure (STD): 3 bar
• Minimum inlet pressure (PUMP): 1 bar
• Maximum outlet pressure: 8 bar
• Operating temperature: 4–45 °C
• Maximum water hardness: 35 °f (350 ppm CaCO3)
• Maximum iron: ≤ 0.2 ppm
• Maximum manganese: ≤ 0.05 ppm
• Maximum chlorine: ≤ 0.3 ppm
• Organic substances: Absent
• Total dissolved solids (TDS): 1000 ppm
• Power supply: 220/230 V, 50/60 Hz
• Voltage: 24 V
• Current: 0.9 A
• Power: 17 W
• Flow rate at 5.5 bar: 0.63 litres/minute
• Opening flow rate: 1.34 litres/minute
