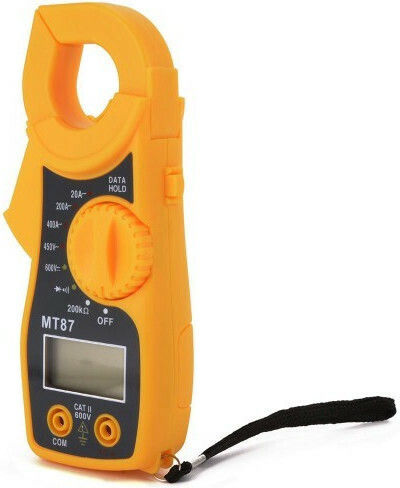

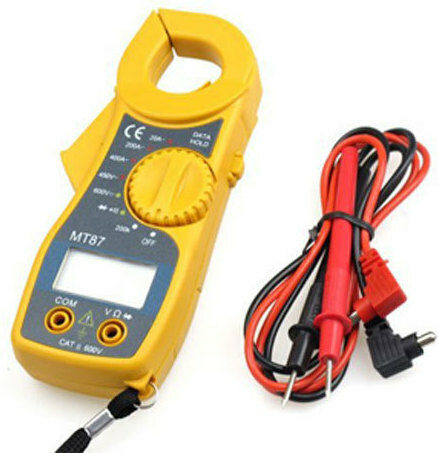

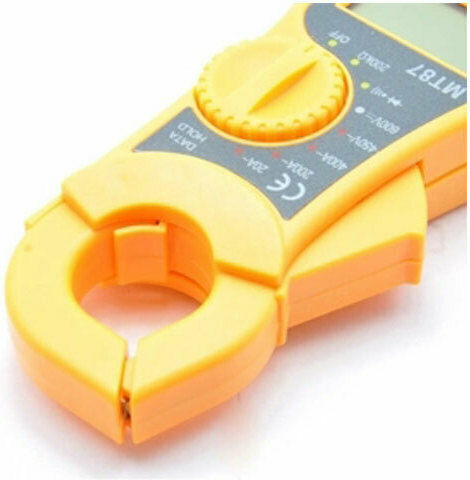

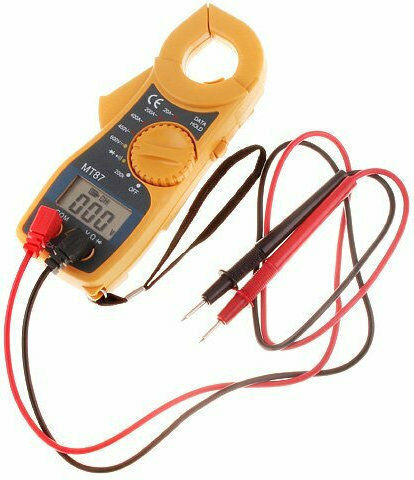

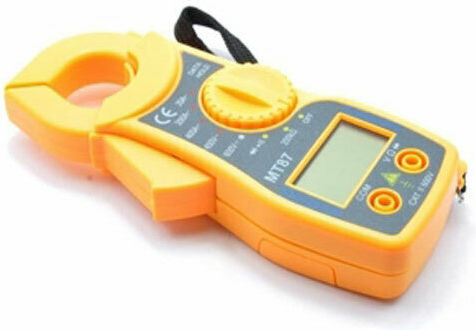

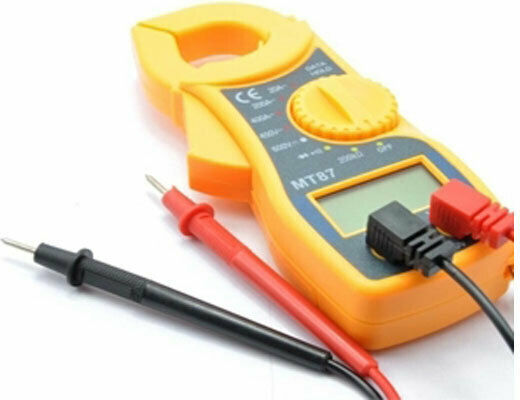

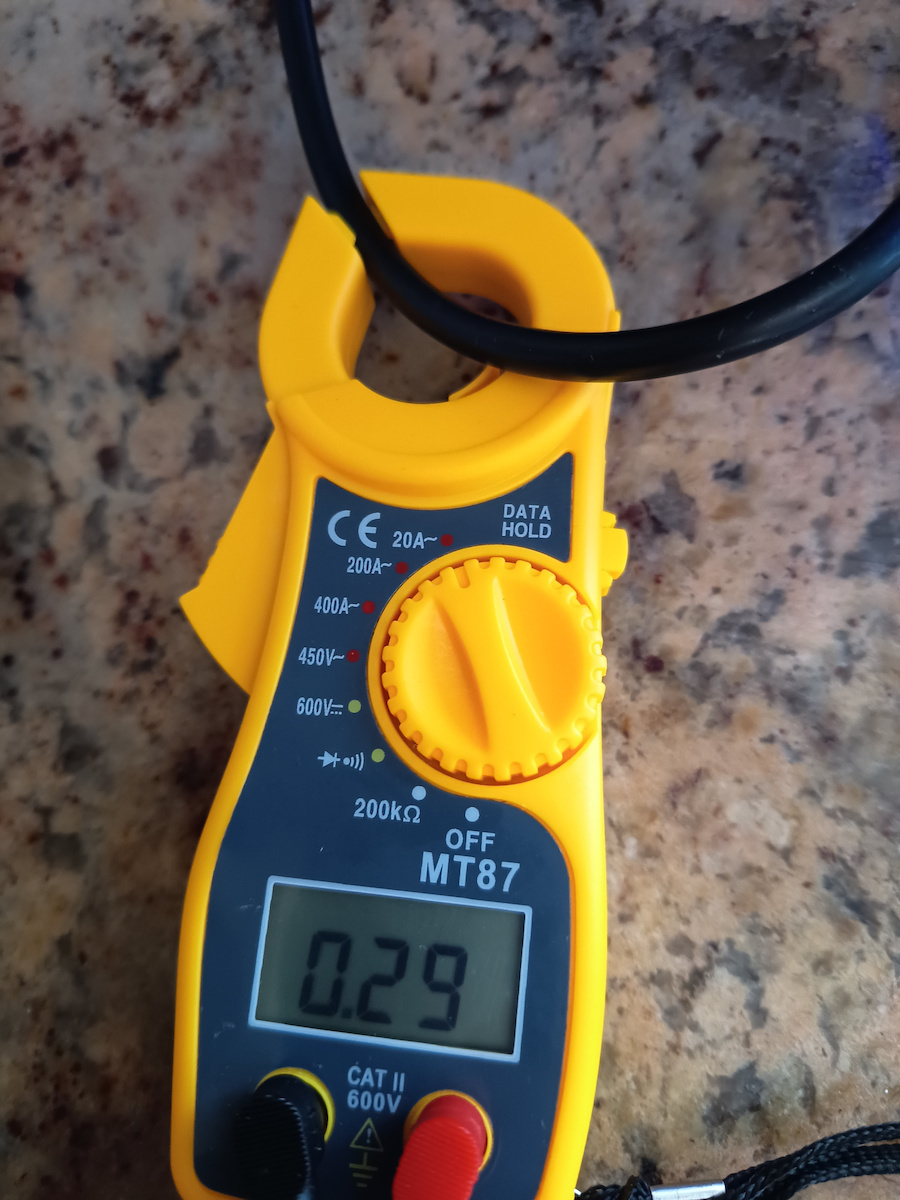

The MT-87 digital clamp meter measures alternating current up to 400 A, alternating voltage up to 450 V, and direct voltage up to 600 V. It also measures resistance up to 200 kΩ and features diode and transistor testing, as well as a continuity test with an audible indicator.
- Display: Digital
- Maximum alternating current: 400 A
- Maximum alternating voltage: 450 V
- Maximum direct voltage: 600 V
- Maximum resistance: 200 kΩ
- Alternating current measurement accuracy: ±(3% + 5d)
- Alternating voltage measurement accuracy: ±(1.2% + 5d)
- Direct voltage measurement accuracy: ±(1.0% + 2d)
- Resistance measurement accuracy: ±(1.0% + 4d)
- Power supply: 2 × 1.5 V AAA batteries
- Dimensions: 150 × 63 × 28 mm
- Weight: 123 g
Manufacturer
OEMDimensions
- with Test Leads
- No
- AC Current
- 400 A
- Indication
- Digital
- Bluetooth
- No
- ISO/NIST Calibration Certificate
- No
Features & Functions
- Inrush Current
- -
- True RMS
- No
- NCV
- No
- LoZ (Low Impedance / Low Impedance)
- -
- VFD Mode / LPF (Low Pass Filter)
- -
- Temperature Measurement
- -
- Capacitor Capacitance Measurement
- -
