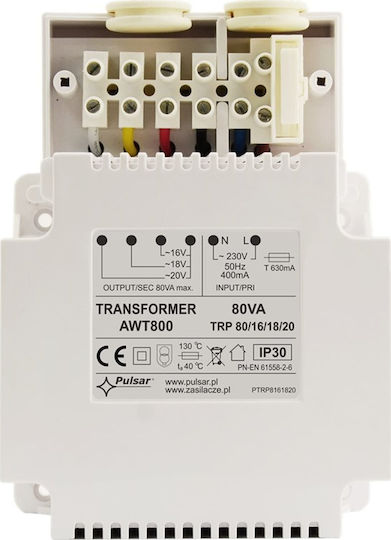

The Pulsar AWT800 transformer is designed to power AC devices and features short-circuit and overload protection. Here are its main specifications:

• Power capacity: 80VA
• Supply voltage: 230V AC / 50 Hz
• Output voltage (U1/U2/U3): 16V / 18V / 20V
• Current at nominal load: 0.4A
• Nominal output current (I1/I2/I3): 5.0A / 4.5A / 4.0A
• Short-circuit protection: Fuse F (T 630 mA/250V)
• Thermal protection: 130°C (non-resettable)
• Connections: AWG 24-12, 2.5 mm²
• Casing: PC/ABS, UL94-V0
• Operating temperature: -10°C ... +40°C
• Relative humidity: 90%
• Dimensions: 100 x 137 x 70 mm
• Weight with packaging: 1.5 kg
• EAN (GTIN): 5901643195168
• Environmental class: II
