Electrical Panel Push Buttons Switches

ETI 1-Pole Changeover Panel Push Button Changeover Switch 40A

Power Limiter ETIMAT T 1P 40A IP20 002181077

The ETIMAT T power limiter (surge protector) is intended for installation in the distribution board as pre-meter protection. The purpose of this protection...

Power Limiter ETIMAT T 1P 40A IP20 002181077

The ETIMAT T power limiter (surge protector) is intended for installation in the distribution board as pre-meter protection. The purpose of this protection is to selectively disconnect with respect to the surge protection of the consumer Z4.

The ETIMAT T power limiter replaces the selective circuit breakers within...

See full description See full description

Description

Description

Power Limiter ETIMAT T 1P 40A IP20 002181077

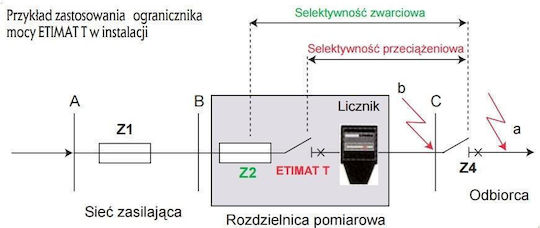

The ETIMAT T power limiter (surge protector) is intended for installation in the distribution board as pre-meter protection. The purpose of this protection is to selectively disconnect with respect to the surge protection of the consumer Z4.

The ETIMAT T power limiter replaces the selective circuit breakers within their nominal currents. It is a surge protector without a short-circuit element and only has an overload element (thermal). A sealed circuit breaker is installed in the distribution board, so that its operating lever is accessible to the consumer.

Technical specifications:

  • Rated voltage: 230/400V AC
  • Insulation voltage: 500V
  • Rated current: 40A
  • Number of poles: 1p
  • Operating temperature range: -25 to +50°C
  • Protection degree: IP20

Manufacturer

See full description

Specifications

Specifications

Specifications

Panel Switches Type
Changeover
Number of Poles
1
Rated Voltage
40 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Power Limiter ETIMAT T 1P 40A IP20 002181077

The ETIMAT T power limiter (surge protector) is intended for installation in the distribution board as pre-meter protection. The purpose of this protection is to selectively disconnect with respect to the surge protection of the consumer Z4.

The ETIMAT T power limiter replaces the selective circuit breakers within their nominal currents. It is a surge protector without a short-circuit element and only has an overload element (thermal). A sealed circuit breaker is installed in the distribution board, so that its operating lever is accessible to the consumer.

Technical specifications:

  • Rated voltage: 230/400V AC
  • Insulation voltage: 500V
  • Rated current: 40A
  • Number of poles: 1p
  • Operating temperature range: -25 to +50°C
  • Protection degree: IP20

Manufacturer

Specifications

Panel Switches Type
Changeover
Number of Poles
1
Rated Voltage
40 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
