The FBT DLM260 digital audio processor features 2 inputs and 6 outputs, with EQ, Gate, Delay and Dynamic EQ functions. It supports matrix routing, allowing each input to be routed to any output, as well as IIR, FIR and Linear Phase crossovers. It includes RMS and Peak limiters, Auto EQ with IIR or FIR, and a signal generator with pink or white noise.

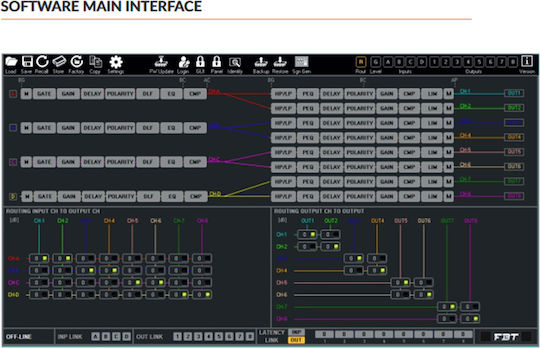

The system’s frequency and phase response can be measured using a computer and audio interface. The LCD and six-segment LED indicators display input and output levels, as well as limiter activity, while the one-touch mute function covers all inputs and outputs. It features a USB port for connecting to a computer, while Ethernet or RS 485 connectivity supports larger systems.

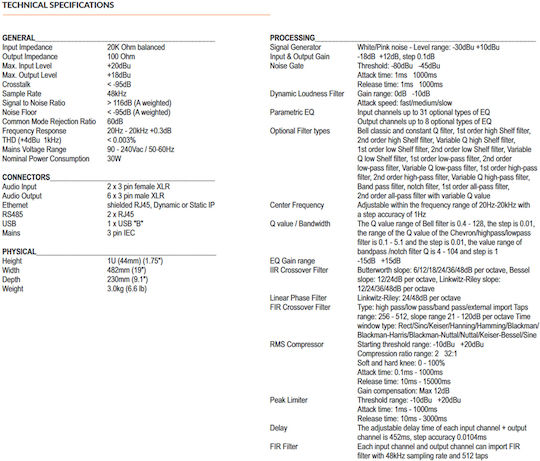

• Type: Digital audio processor
• Inputs: 2
• Outputs: 6
• Processing: EQ, Gate, Delay, Dynamic EQ
• Crossover: IIR, FIR, Linear Phase
• Limiter: RMS and Peak
• Auto EQ: IIR and FIR
• Signal generator: Pink and white noise
• Sampling rate: 48 kHz
• Input impedance: 20 kΩ, balanced
• Output impedance: 100 Ω
• Maximum input level: +20 dBu
• Maximum output level: +18 dBu
• Crosstalk: 116 dB (A-weighted)
• Noise floor: < -95 dB (A-weighted)
• Common-mode rejection ratio: 60 dB
• Frequency response: 20 Hz–20 kHz, +0.3 dB
• THD (+4 dBu, 1 kHz): < 0.003%
• Power supply: 90–240 Vac, 50–60 Hz
• Rated power consumption: 30 W
• Audio inputs: 2 female 3-pin XLR
• Audio outputs: 6 male 3-pin XLR
• Ethernet: Shielded RJ45, dynamic or static IP
• RS 485: 2 RJ45 ports
• USB: 1 USB B port
• Power connection: 3-pin IEC
• Height: 1U (44 mm)
• Width: 482 mm
• Depth: 230 mm
• Weight: 3 kg
