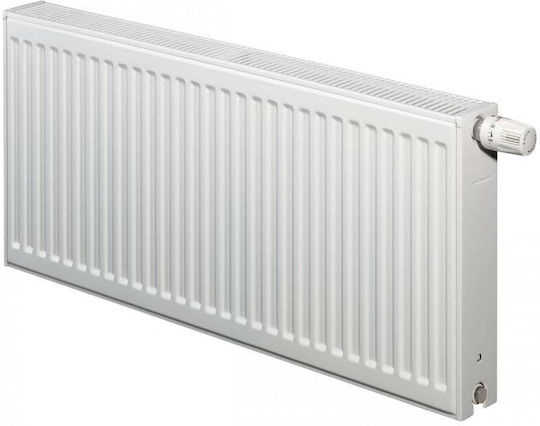

Radiator body with a discreet, modern connection design, integrated thermostatic valve, and child-friendly rounded corners.

Novello radiators are made from high-quality cold-rolled special metal according to EN 442-1, with side protections and top grille cover. They constitute a complete heating element.

The panel plate has a curvature every 33.3 mm. On the internal sides of the hydraulic channels, the metal sheet responsible for meeting is welded. The external surface treatment includes degreasing, iron phosphating, passivation, washing, and coating by electrophoresis according to DIN 55900 part 1 and baking.

The final surface treatment is done with high-value electrostatic powder coating according to DIN 55900 part 2 and baking again. Color: Stelrad white 9016.

Normally, the radiators are equipped with a complete Monclac type support set, which allows tilting of the radiator and convenient installation. They constitute a unit with the integrated valve assembly, with the pre-installed valve (without thermostatic head) and air vent.

They are packaged in shrink film with cardboard edge protection, including the supports.

The construction complies with BAGUV safety requirements.

It has quality according to DIN ISO 9002 and heat output tested according to EN 442.

Connections: 6x 1/2". Connection: from below or from the side, right or left. Working overpressure: 10 bar. Heat carrier temperature: hot water up to 110°C. Type: 22. Height: 600mm. Length: 700mm. Depth: 100mm. Capacity: 75/65/20°C: 1212W, 70/55/20°C: 837W, 55/45/20°C: 526W.
