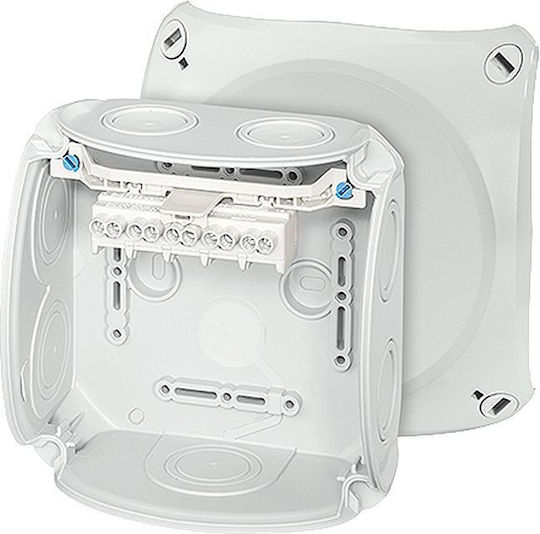

Junction box 130x130x77 5x4mm2 CU IP66 gray DK 0604 GZ (62000152)

Description:

• 1.5-4 mm², Cu 3~ two terminals for each pole for each 5 pole: 8 x 1.5 mm² sol/f
• 6 x 2.5 mm² sol/f
• 4 x 4 mm² sol/f
• 2 x 6 mm² sol/f with built-in cable glands (sealing range Ø 9.0-21.0 mm)
• Can be removed and replaced with screw-type cable glands
• With built-in membrane cable gland at the bottom of the box (sealing range Ø 9.0-20.0 mm)
• Cover sealing without additional components
• Includes brackets for mounting the box and a cord that connects the cover to the base
• Color: gray, RAL 7035

Technical specifications:

• Rated insulation voltage Ui = 690 V a.c./d.c.
• Rated current: 32A
• Clamp torque: 0.7 Nm
• Material: PP (polypropylene)
• Degree of protection: IP 66
• Width 130 mm
• Height 130 mm
• Depth 77 mm
• Weight 0.215 kg according to IEC 60670-22 standard

Surface conductivity with plugs. Degree of protection IP66.
