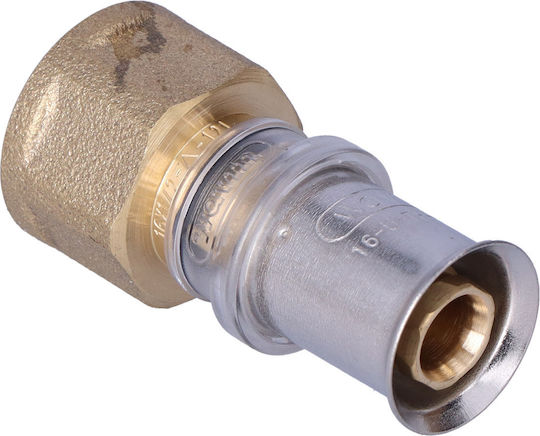

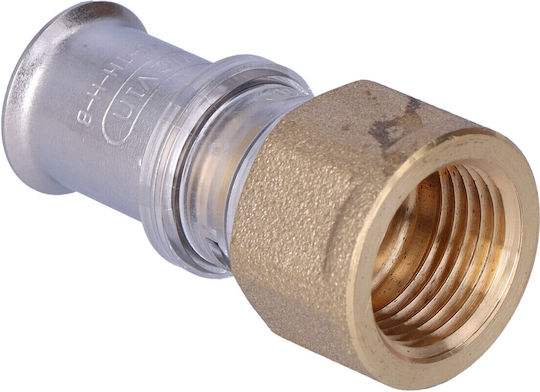

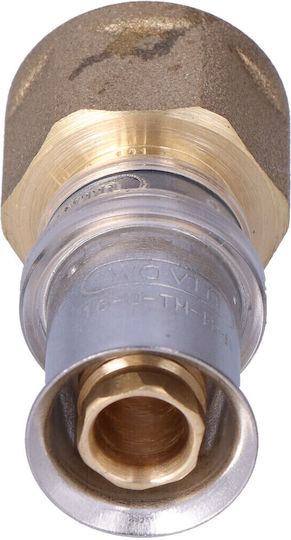

Wavin Tigris M5 4064245 GW 16x1/2 fitting.

The Tigris M5 is the world's first fitting with the innovative ACOUSTIC LEAK ALERT function, allowing for acoustic leak detection. The Wavin Tigris M5 features an integrated acoustic leak detection system during air pressure tests.

This feature facilitates installers, allowing for quick inspection of the installation and detection of uncompressed fittings. Each unpressed fitting emits a sound of 80 dB, making it easy to locate.

The Wavin Tigris M5 family includes nearly 140 fitting variations with diameters from 16–40 mm and is fully compatible with its predecessor, Wavin Tigris M1. Both models fit the same PE-Xc/Al./PE multilayer pipe, suitable for hot water installations, central heating, and underfloor heating.

Applications:

• Hot and cold utility water
• Central heating
• Underfloor heating
• Technological installations (cold water, compressed air)

Technical Specifications:

• Main material: Brass
• RAL color: Brass
• Outer pipe diameter, connection 1: 16 mm
• Pipe diameter, connection 2: 21.2 mm
• Nominal inner diameter connection 1: 1/2 inch
• Nominal inner diameter connection 2: DN 12
• Wall thickness, connection 1: 2 mm
• Wall thickness, connection 2: 2.25 mm
• Connection length 1: 25.5 mm
• Connection length 2: 0 mm
• Maximum working pressure at 70ºC: 10 BAR
• Connection 1: Compression sleeve connection
• Connection 2: Cylindrical internal gas thread (BSPP)
• Sealing material: EPDM
• Maximum average temperature (continuous): 70ºC
• Minimum average temperature: 0ºC
• Wrench width: 27 mm
