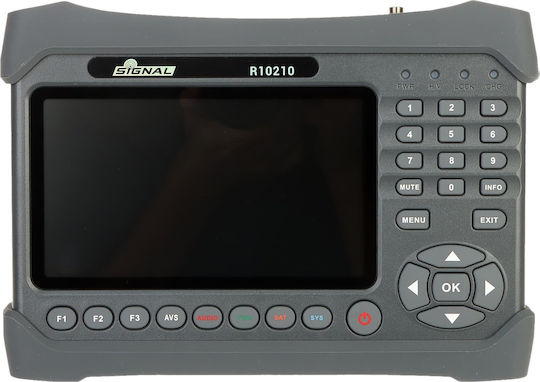

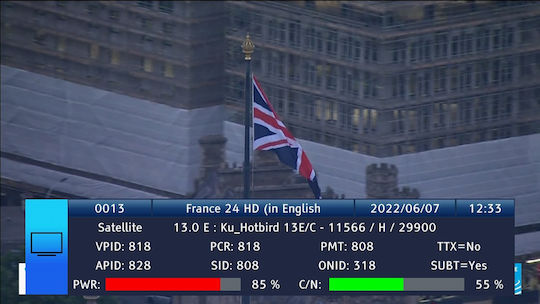

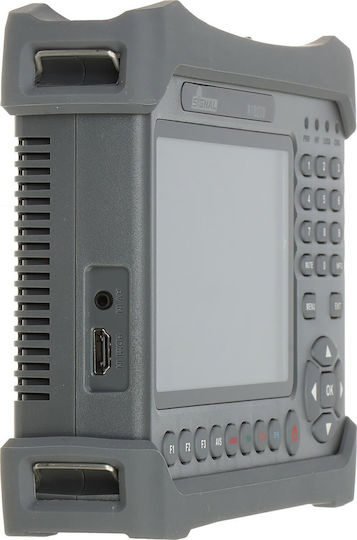

The Signal ST-6986 digital field meter measures DVB-T/T2, DVB-S/S2, and DVB-C television signals. Its built-in receiver allows continuous signal preview, while the spectrum analyzer makes it easy to adjust and optimize reception. The color LCD has a resolution of 1280 x 720 px.

• Type: Digital
• Reception standards: DVB-T/T2, DVB-S/S2, DVB-C
• Display: Color LCD
• Display resolution: 1280 x 720 px
• Frequency range: 48 MHz to 862 MHz (DVB-T/T2/C), 950 MHz to 2150 MHz (DVB-S/S2)
• Signal level: -20 to +80 dBm (DVB-S/S2), -20 to +80 dBm (DVB-T/T2/C), -40 to +23 dBm (optical power meter)
• Signal measurements: dBμV, C/N, BER, MER
• Modulation: QPSK / 8PSK / 16APSK (DVB-S/S2), QPSK / 16-QAM / 64-QAM / 256-QAM (DVB-T/T2/C)
• Video decoding: MPEG-2 / H.264 / H.265

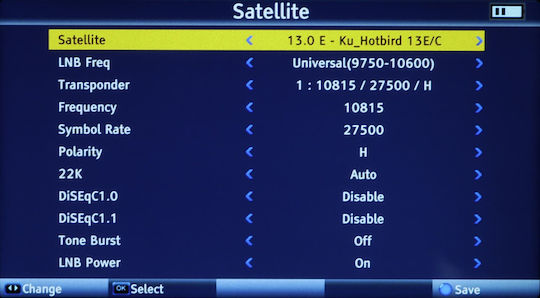

• Standards and functions: DiSEqC 1.0, 1.1, 1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband
• Optical wavelengths: 850, 1300, 1310, 1330, 1490, 1550, 1625 nm

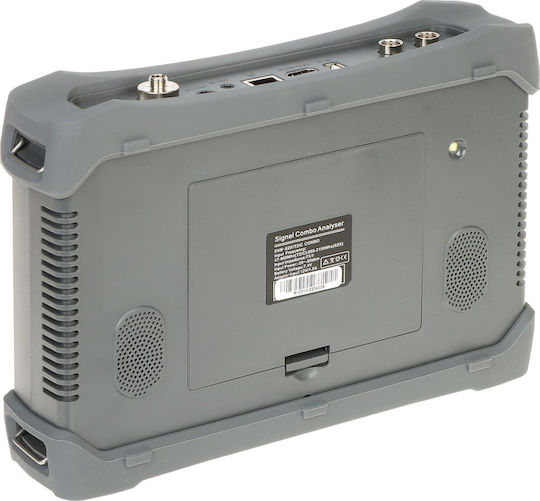

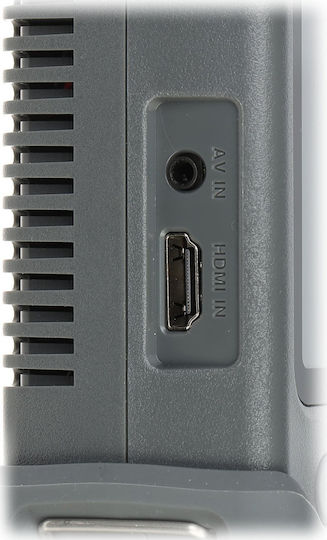

• Connectors: IEC - Ant, 'F' - LNB, HDMI, AV - mini Jack, SC / FC optical input
• Outputs: HDMI, AV - mini Jack, 12 V DC
• USB connection: For multimedia files
• Menu languages: Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian

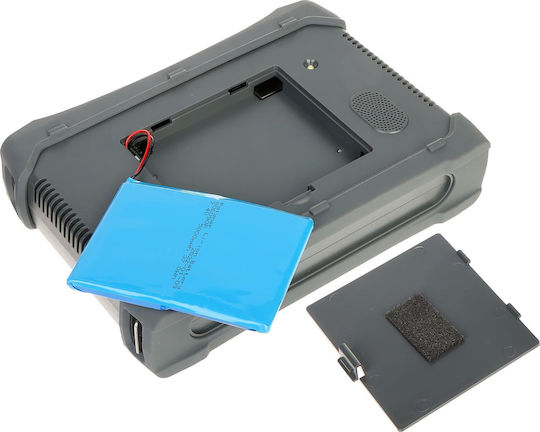

• Power supply: 7.4 V / 5000 mAh Li-Ion battery
