F&F Adjustable Day / Night Photocell 2-1000 Lux 10A IP65
Day / Night Photocells

F&F Adjustable Day / Night Photocell 2-1000 Lux 10A IP65

LED Life Automaton Sensor AZH 230V

Usage: Automatic control for LED lighting. The AZH-LED Automaton is used for controlling LED light sources or other energy receivers that produce strong currents at...

LED Life Automaton Sensor AZH 230V

Usage: Automatic control for LED lighting. The AZH-LED Automaton is used for controlling LED light sources or other energy receivers that produce strong currents at the moment of connection. The AZH-LED is a device containing a built-in photosensitive sensor, placed in a waterproof case and specially designed for activating...

See full description See full description

  • Current Capacity

    Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.

  • Brightness Lux

    Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

    At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

    At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.

  • Adjustable

    With a switch that allows the lux value to be set to the desired level.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.

  • Operating Voltage

    It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
  • See all
Review the product
Product report

Description

Description

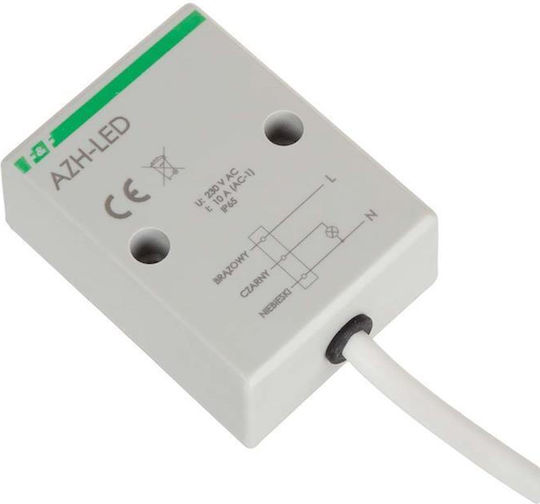

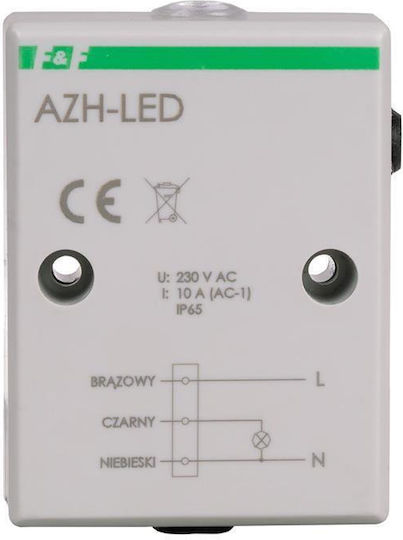

LED Life Automaton Sensor AZH 230V

Usage: Automatic control for LED lighting. The AZH-LED Automaton is used for controlling LED light sources or other energy receivers that produce strong currents at the moment of connection. The AZH-LED is a device containing a built-in photosensitive sensor, placed in a waterproof case and specially designed for activating LED lighting.

Action: Place the device in a location with permanent access to natural lighting, which changes its intensity so that the lighting turns on and off automatically. The lighting time can be adjusted by the user with a potentiometer. Set to "moon" – it will activate later, set to "sun" – it will activate earlier.

Technical specifications:

  • Power supply: 230 V
  • Maximum load: 10 A
  • Light element: built-in
  • Case: waterproof
  • Installation: surface 195÷253 V AC
  • Shock resistance - cooperation with LED 160 A/20 ms
  • Threshold value - adjustable 2 ÷ 1000 Lx
  • Switch operation delay time: approximately 10 s
  • Power consumption: 0.56 W
  • Operating temperature: -25 ÷ 50 °C
  • Dimensions: 51×67×26 mm (± 1 mm)
  • Protection category: IP65 - Waterproof

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Current Capacity
10 A

Current Capacity

Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.
Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.
Operating Voltage
230V

Operating Voltage

It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
Brightness Lux
2-1000 Lux

Brightness Lux

Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.
Adjustable
Yes

Adjustable

With a switch that allows the lux value to be set to the desired level.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

LED Life Automaton Sensor AZH 230V

Usage: Automatic control for LED lighting. The AZH-LED Automaton is used for controlling LED light sources or other energy receivers that produce strong currents at the moment of connection. The AZH-LED is a device containing a built-in photosensitive sensor, placed in a waterproof case and specially designed for activating LED lighting.

Action: Place the device in a location with permanent access to natural lighting, which changes its intensity so that the lighting turns on and off automatically. The lighting time can be adjusted by the user with a potentiometer. Set to "moon" – it will activate later, set to "sun" – it will activate earlier.

Technical specifications:

  • Power supply: 230 V
  • Maximum load: 10 A
  • Light element: built-in
  • Case: waterproof
  • Installation: surface 195÷253 V AC
  • Shock resistance - cooperation with LED 160 A/20 ms
  • Threshold value - adjustable 2 ÷ 1000 Lx
  • Switch operation delay time: approximately 10 s
  • Power consumption: 0.56 W
  • Operating temperature: -25 ÷ 50 °C
  • Dimensions: 51×67×26 mm (± 1 mm)
  • Protection category: IP65 - Waterproof

Manufacturer

Manufacturer Details

Warnings & Safety Information
Current Capacity
10 A

Current Capacity

Indicates the maximum current (in Amperes) that the photocell can handle. It is important so that it can withstand the current of the connected lighting fixture.
Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial areas.
Operating Voltage
230V

Operating Voltage

It is the network voltage (in Volts) to which the photocell must be connected in order to operate properly.
Brightness Lux
2-1000 Lux

Brightness Lux

Specifies the brightness level (in lux) at which the photocell activates or deactivates the lights.

At low lux values (e.g. 5-20 lux), it means that the photocell will turn on the lights very late, when it is almost completely dark.

At high lux values (e.g. 50-100 lux), it means that the photocell will turn on the lights very early, already at dusk or when the weather is simply cloudy.
Adjustable
Yes

Adjustable

With a switch that allows the lux value to be set to the desired level.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
