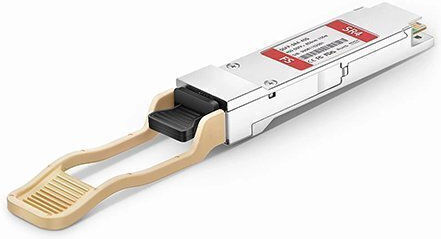

The Cisco QSFP-40G-SR4= optical transceiver transmits data at a total rate of 40 Gbps across four channels, each supporting up to 10.5 Gbps. It operates at 850 nm over multimode fiber and supports the 40G Ethernet and InfiniBand QDR protocols.
It supports 4x10G breakout mode for connecting to 10GBASE-SR interfaces and reaches distances of up to 150 m over OM4 fiber. It is used for short-range, high-bandwidth connections in data centers, enterprise networks, and telecommunications applications.
- Quantity: 1
- Form factor: QSFP
- Data rate: 40 Gbps
- Channels: 4
- Per-channel data rate: Up to 10.5 Gbps
- Wavelength: 850 nm
- Fiber type: Multimode (MMF)
- Maximum distance: 150 m over OM4 fiber
- Protocols: 40G Ethernet, InfiniBand QDR
- Breakout mode: 4x10G
- Interface: 10GBASE-SR
- Form Factor
- QSFP
- Data Transfer Speed
- 40 Gbps
- Pieces
- 1 pcs
