Pipe Insulations

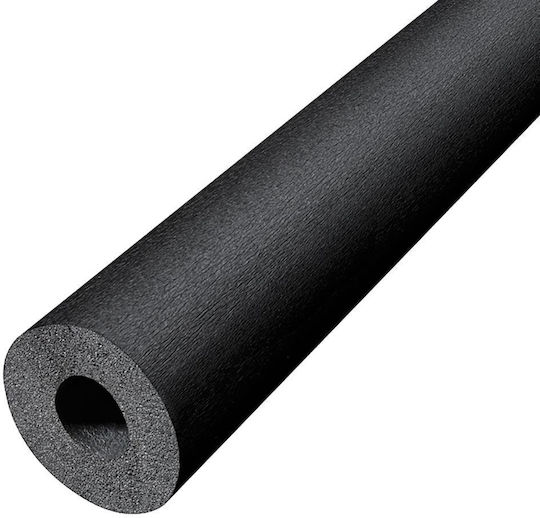

Pipe Insulation D12mm Code: 1013616

Density: Made with a density ranging from 50 to 65 kg/m3. These values result in high insulation resistance against wear that could occur during installation.

Ideal application: Provides a functional...

Density: Made with a density ranging from 50 to 65 kg/m3. These values result in high insulation resistance against wear that could occur during installation.

Ideal application: Provides a functional and secure application around the pipe without gaps. This is especially important for cooling or air conditioning system installations, as it significantly...

See full description See full description

Description

Description

Density: Made with a density ranging from 50 to 65 kg/m3. These values result in high insulation resistance against wear that could occur during installation.

Ideal application: Provides a functional and secure application around the pipe without gaps. This is especially important for cooling or air conditioning system installations, as it significantly prevents the formation of condensation.

Temperature resistance: The insulation's resistance within a temperature operating range from -40°C to +105°C remains stable. However, brief operation outside these limits will not cause failure.

Elasticity: Exhibits excellent flexibility and elasticity. This allows for easy and quick application of the insulation around the pipe.

Permeability: Its structure and material offer very high resistance to water vapor transmission. This ensures long-term performance and effectiveness. (μ > 7000)

Thermal conductivity: Thanks to air (closed cells) and elastomeric materials, this product significantly reduces heat transfer: λ = 0.035W/mK at 0°C, λ = 0.036W/mK at 10°C, λ = 0.037W/mK at 20°C, λ = 0.040W/mK at 40°C.

Fire behavior: Demonstrates excellent fire resistance. It does not produce flaming particles and does not allow flame spread. Provides safe thermal insulation and is recommended as the ideal choice for residential, commercial spaces, and public buildings. Class 0, Class 1, B - s3, d0.

Manufacturer

OEM
See full description

Specifications

Specifications

Product Number
1013616
Diameter
12 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Density: Made with a density ranging from 50 to 65 kg/m3. These values result in high insulation resistance against wear that could occur during installation.

Ideal application: Provides a functional and secure application around the pipe without gaps. This is especially important for cooling or air conditioning system installations, as it significantly prevents the formation of condensation.

Temperature resistance: The insulation's resistance within a temperature operating range from -40°C to +105°C remains stable. However, brief operation outside these limits will not cause failure.

Elasticity: Exhibits excellent flexibility and elasticity. This allows for easy and quick application of the insulation around the pipe.

Permeability: Its structure and material offer very high resistance to water vapor transmission. This ensures long-term performance and effectiveness. (μ > 7000)

Thermal conductivity: Thanks to air (closed cells) and elastomeric materials, this product significantly reduces heat transfer: λ = 0.035W/mK at 0°C, λ = 0.036W/mK at 10°C, λ = 0.037W/mK at 20°C, λ = 0.040W/mK at 40°C.

Fire behavior: Demonstrates excellent fire resistance. It does not produce flaming particles and does not allow flame spread. Provides safe thermal insulation and is recommended as the ideal choice for residential, commercial spaces, and public buildings. Class 0, Class 1, B - s3, d0.

Manufacturer

OEM
Product Number
1013616
Diameter
12 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

0,48 €
14,00 €   shipping cost
