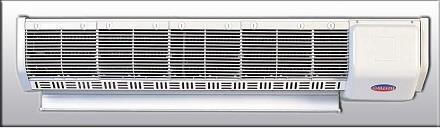

Olefini Water Heated Air Curtain with Maximum Air Supply 2935m³/h 120cm ΔWΗ-23
Air Curtains

Olefini Water Heated Air Curtain with Maximum Air Supply 2935m³/h 120cm ΔWΗ-23

General Features:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Bracket, Door Switch,...

General Features:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Bracket, Door Switch, Stainless Steel Shell (430)

Technical Features:

  • Maximum opening width: 1.2m
  • Maximum opening height: 5.0m
  • Maximum air outlet speed: 11/8.5 (m/sec)
  • Maximum air...
See full description See full description

  • Width

    120

    When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

  • Maximum Airflow

    The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.

  • Maximum Installation Height

    5

    Installation height according to the model specifications.

  • Type

    Water Heated

    Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
  • See all
Review the product
Product report

Description

Description

General Features:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Bracket, Door Switch, Stainless Steel Shell (430)

Technical Features:

  • Maximum opening width: 1.2m
  • Maximum opening height: 5.0m
  • Maximum air outlet speed: 11/8.5 (m/sec)
  • Maximum air supply: 2935/2270 m³/h
  • Motor output power: 660 watt
  • Motor operating capacitor: 12 μf
  • Total water volume (lt): 1.28
  • Noise level at 1m: 64/60 dB(A)

Dimensions:

  • L: Total length 1491 mm
  • W: Total width 306 mm
  • H: Height 227 mm
  • l: Outlet length 1236 mm
  • w: Outlet width 76 mm
  • h: Outlet height 64 mm

Weight: 34 Kg

Temperatures:

  • Air inlet temperature: +15°C
  • Water inlet temperature: +70°C
  • Thermal Power (kw): 19.0/17.0
  • Air outlet temperature (°C): 34 /36
  • Water outlet temperature (°C): 54.5/56
  • Water pressure drop ΔΡ (kPa): 3.8

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
2935 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
5 m

Maximum Placement Height: 5


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Width
120 cm

Width: 120


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

General Features:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Bracket, Door Switch, Stainless Steel Shell (430)

Technical Features:

  • Maximum opening width: 1.2m
  • Maximum opening height: 5.0m
  • Maximum air outlet speed: 11/8.5 (m/sec)
  • Maximum air supply: 2935/2270 m³/h
  • Motor output power: 660 watt
  • Motor operating capacitor: 12 μf
  • Total water volume (lt): 1.28
  • Noise level at 1m: 64/60 dB(A)

Dimensions:

  • L: Total length 1491 mm
  • W: Total width 306 mm
  • H: Height 227 mm
  • l: Outlet length 1236 mm
  • w: Outlet width 76 mm
  • h: Outlet height 64 mm

Weight: 34 Kg

Temperatures:

  • Air inlet temperature: +15°C
  • Water inlet temperature: +70°C
  • Thermal Power (kw): 19.0/17.0
  • Air outlet temperature (°C): 34 /36
  • Water outlet temperature (°C): 54.5/56
  • Water pressure drop ΔΡ (kPa): 3.8

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
2935 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
5 m

Maximum Placement Height: 5


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Width
120 cm

Width: 120


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
