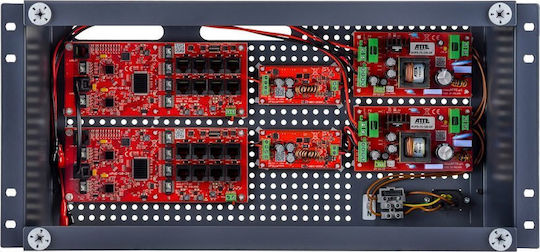

The Atte Power IPUPS-16-20-R5U0 backup power supply set is designed for IP CCTV systems with up to 16 cameras and supports 4K Ultra HD cameras. It powers up to 16 PoE 802.3at/af or PASSIVE receivers, while independent electronic fuses protect each channel against short circuits or overloads and automatically restore the voltage once the fault is corrected. Power to the PoE ports can be disabled.

The modular design allows expansion with switches from the xPoE / IP and IPB / IPUPS series. The ABOX-R5U0 enclosure is designed for rack mounting and has a main body made of sheet steel and a sheet aluminum cover that can be removed without tools. Selected devices can be mounted vertically or horizontally.

• Quantity: 1
• Capacity: Up to 16 IP cameras
• Image support: 4K Ultra HD
• PoE standards: 802.3at/af or PASSIVE
• PoE protection: Independent electronic fuse per channel with automatic reset
• Indicators: Visual indicators for power and data transmission
• Power per port: Up to 40 W on ports LAN_1 to LAN_8
• Power supply: 12 VDC and 48 VDC
• Power supply efficiency: 90%

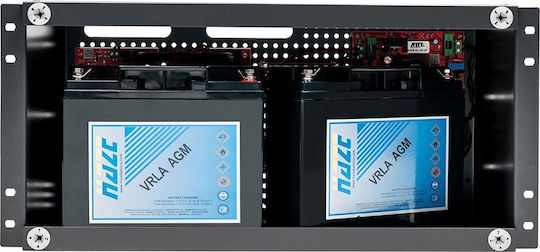

• Battery compartment: For 2 x 18 Ah batteries
• Expandability: With switches from the xPoE / IP and IPB / IPUPS series
• Enclosure: ABOX-R5U0 for rack mounting
• Body material: Sheet steel
• Cover material: Sheet aluminum
• Color: Semi-matte graphite RAL 7024
• Perforations: 10.8 mm grid, compatible with the mounting hole spacing of the units
• Mounting: Vertical or horizontal for selected devices
• Cover: Removable without tools
