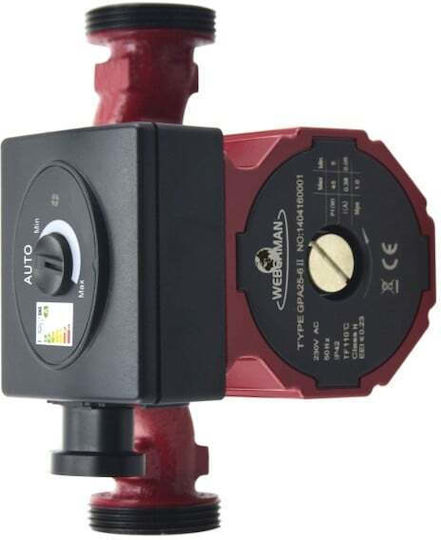

Weber Systems GPA II 25-4 Electronic Circulator Pump Hot Water Recirculation 180mm
Circulator Pumps

Weber Systems GPA II 25-4 Electronic Circulator Pump Hot Water Recirculation 180mm Code: 0601W

Model: GPA II 25-4-180

Maximum operating range: 2.4 m³/h

Maximum lift height: 4.1m

Liquid temperature:

  • Minimum: +2°C
  • Maximum: +110°C

Type of pumped liquid: Clean, without solids, fibers, and mineral...

Model: GPA II 25-4-180

Maximum operating range: 2.4 m³/h

Maximum lift height: 4.1m

Liquid temperature:

  • Minimum: +2°C
  • Maximum: +110°C

Type of pumped liquid: Clean, without solids, fibers, and mineral oil substances, non-viscous, chemically neutral, non-corrosive, and non-explosive, with parameters similar to water.

Minimum inlet pressure depending on liquid...

See full description See full description
Review the product
Product report

Description

Description

Model: GPA II 25-4-180

Maximum operating range: 2.4 m³/h

Maximum lift height: 4.1m

Liquid temperature:

  • Minimum: +2°C
  • Maximum: +110°C

Type of pumped liquid: Clean, without solids, fibers, and mineral oil substances, non-viscous, chemically neutral, non-corrosive, and non-explosive, with parameters similar to water.

Minimum inlet pressure depending on liquid temperature:

  • 0.50 bar up to 85°C
  • 0.28 bar up to 90°C
  • 1.00 bar up to 110°C

Maximum pressure: 1.0 MPa

Protection class: IP 42

Insulation class: H

Energy efficiency index: EEI ≤0.23

Installation: with shaft in horizontal position, cable gland facing down or sideways

Voltage: ~230V (-6% – +10%), 50/60Hz

Power consumption: 5 – 22W; 0.05 – 0.19A

Connection distance: 180 mm

Connection: 3/2”

Environment parameters: 0°C – 40°C; RH

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
0601W

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Hot Water Recirculation

Application

Hot Water Recirculation
The circulator provides a ready flow of hot water for use, and is considered an energy-intensive operation.
Maximum Pressure Head (m)
4.1 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Model: GPA II 25-4-180

Maximum operating range: 2.4 m³/h

Maximum lift height: 4.1m

Liquid temperature:

  • Minimum: +2°C
  • Maximum: +110°C

Type of pumped liquid: Clean, without solids, fibers, and mineral oil substances, non-viscous, chemically neutral, non-corrosive, and non-explosive, with parameters similar to water.

Minimum inlet pressure depending on liquid temperature:

  • 0.50 bar up to 85°C
  • 0.28 bar up to 90°C
  • 1.00 bar up to 110°C

Maximum pressure: 1.0 MPa

Protection class: IP 42

Insulation class: H

Energy efficiency index: EEI ≤0.23

Installation: with shaft in horizontal position, cable gland facing down or sideways

Voltage: ~230V (-6% – +10%), 50/60Hz

Power consumption: 5 – 22W; 0.05 – 0.19A

Connection distance: 180 mm

Connection: 3/2”

Environment parameters: 0°C – 40°C; RH

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
0601W

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Hot Water Recirculation

Application

Hot Water Recirculation
The circulator provides a ready flow of hot water for use, and is considered an energy-intensive operation.
Maximum Pressure Head (m)
4.1 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
