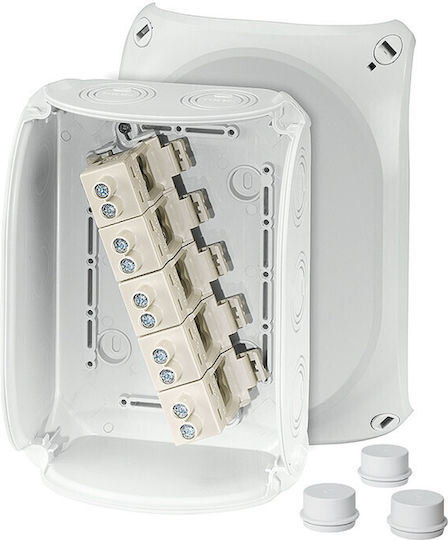

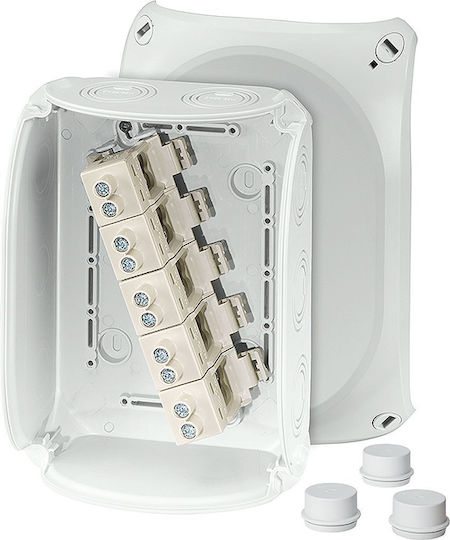

Hensel Surface Mounted Electrical Box Branching Watertight IP66 in Gray Color
Junction Boxes

Hensel Surface Mounted Electrical Box Branching Watertight IP66 in Gray Color

Junction box 210x155x92 5x16mm2 CU IP66 gray DK 1616 GZ.

  • Technical specifications:
  • Cover mounting: screw-mounted
  • Operational behavior: none
  • Unbreakable: opaque
  • Type of seal in housing: sealing...

Junction box 210x155x92 5x16mm2 CU IP66 gray DK 1616 GZ.

  • Technical specifications:
  • Cover mounting: screw-mounted
  • Operational behavior: none
  • Unbreakable: opaque
  • Type of seal in housing: sealing membrane
  • Color: gray
  • Protection level (IP): IP66
  • With shielding: no
  • Weather resistant: no
  • Explosion-proof version: no
  • For areas with explosion hazards: none
  • For dust...
See full description See full description
Review the product
Product report

Description

Description

Junction box 210x155x92 5x16mm2 CU IP66 gray DK 1616 GZ.

  • Technical specifications:
  • Cover mounting: screw-mounted
  • Operational behavior: none
  • Unbreakable: opaque
  • Type of seal in housing: sealing membrane
  • Color: gray
  • Protection level (IP): IP66
  • With shielding: no
  • Weather resistant: no
  • Explosion-proof version: no
  • For areas with explosion hazards: none
  • For dust explosion zones: none
  • Combination: no
  • Depth [mm]: 92
  • Width [mm]: 155
  • Length [mm]: 210
  • Mounting method: wall/ceiling mount
  • Material: plastic
  • Shape: oval
  • Entries on the back: yes
  • Nominal insulation voltage Ui [V]: 690
  • Maximum wire cross-section [mm2]: 16

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
210 mm
Width
155 mm
Height
92 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Junction box 210x155x92 5x16mm2 CU IP66 gray DK 1616 GZ.

  • Technical specifications:
  • Cover mounting: screw-mounted
  • Operational behavior: none
  • Unbreakable: opaque
  • Type of seal in housing: sealing membrane
  • Color: gray
  • Protection level (IP): IP66
  • With shielding: no
  • Weather resistant: no
  • Explosion-proof version: no
  • For areas with explosion hazards: none
  • For dust explosion zones: none
  • Combination: no
  • Depth [mm]: 92
  • Width [mm]: 155
  • Length [mm]: 210
  • Mounting method: wall/ceiling mount
  • Material: plastic
  • Shape: oval
  • Entries on the back: yes
  • Nominal insulation voltage Ui [V]: 690
  • Maximum wire cross-section [mm2]: 16

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
210 mm
Width
155 mm
Height
92 mm
