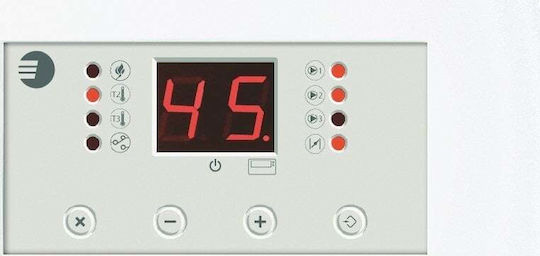

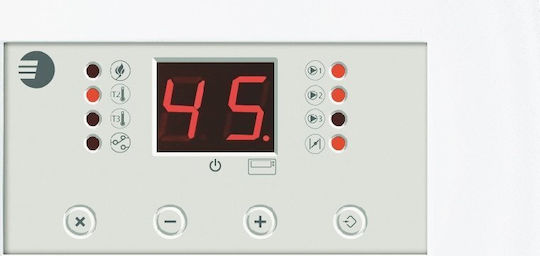

Intelligent Controller for the Hydro Fireplace Heating System EUROSTER 11K

The EUROSTER 11K is a modern controller designed for home heating systems with a hydro fireplace. It manages the circulation pumps and the ducting and offers three different operating modes:

• heating supply via plate heat exchanger
• heating supply from the heat storage
• loading of domestic hot water

The EUROSTER 11K controller also features a pump protection system against sticking - Anty Stop, which operates uniquely in hydro fireplaces. After the heating period is complete, the system periodically activates the pump for about 30 seconds every two weeks.

Connection Codes:

• duct view
• circulation pump
• plate heat exchanger
• heating supply or heat storage loading pump
• domestic hot water loading pump
• universal, voltage-free outputs for controlling additional heat sources (e.g. gas boiler)

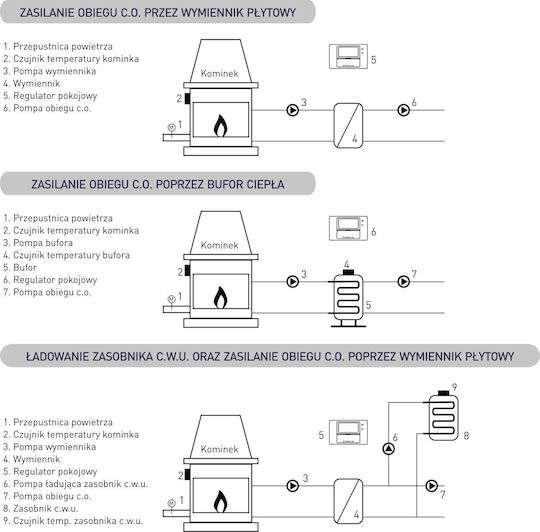

The controller can operate in the following three modes:

• heating supply via plate heat exchanger
• heating supply from the heat storage
• loading of domestic hot water

Automatic activation of an additional heat source (e.g. gas boiler) and adjustment of combustion based on measured temperatures.

Technical Specifications:

• Heating system: system with hydro fireplace
• Voltage: 230 V 50 Hz
• Maximum output load: 3 A (total)
• Maximum power consumption: 4.3 W
• Temperature measurement range: from 0°C to +99°C
• Temperature setting range: from +20°C to +85°C
• Temperature setting accuracy: 1°C
• Visible indication: display and LED
• Operating temperature: from +5°C to +40°C
• Storage temperature: from 0°C to 65°C
• Protection grade: IP 30, category II
• Installation method: wall box 4M
• Weight: 281 g

Includes: EUROSTER 11K controller, temperature sensors: fireplace and storage, instructions, sensor zones, wall box.
