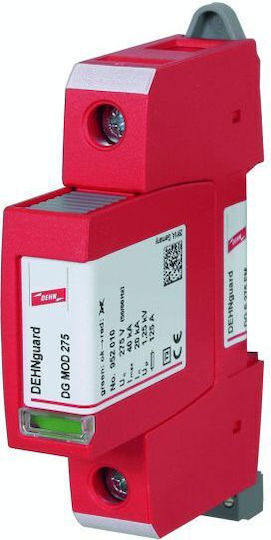

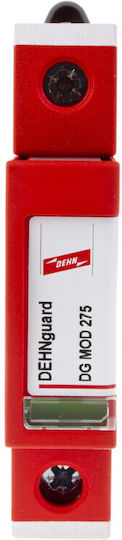

Dehn 1-Pole Inspired T2 Panel Lightning Protection 20kA
Panel Lightning Protection

Dehn 1-Pole Inspired T2 Panel Lightning Protection 20kA Code: 952090

Lightning Arrester Type 2 1P 20kA 1.5kV Polish

  • Maximum continuous operating voltage AC [V]: 275
  • Maximum continuous DC operating voltage [V]: 350
  • Protection level [V]: 1.25
  • Connected cable...

Lightning Arrester Type 2 1P 20kA 1.5kV Polish

  • Maximum continuous operating voltage AC [V]: 275
  • Maximum continuous DC operating voltage [V]: 350
  • Protection level [V]: 1.25
  • Connected cable cross-section (flexible, multi-stranded) [mm2]: up to 25, from 1.5
  • Rigid cable cross-section (single wire, multi-wire) [mm2]: up to 35, from 1.5
  • Module size: 1
  • Mounting...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Lightning Arrester Type 2 1P 20kA 1.5kV Polish

  • Maximum continuous operating voltage AC [V]: 275
  • Maximum continuous DC operating voltage [V]: 350
  • Protection level [V]: 1.25
  • Connected cable cross-section (flexible, multi-stranded) [mm2]: up to 25, from 1.5
  • Rigid cable cross-section (single wire, multi-wire) [mm2]: up to 35, from 1.5
  • Module size: 1
  • Mounting method: DIN rail 35 mm
  • Activation indicator on the visual device
  • Network configuration: TN
  • Nominal discharge current - peak value (8/20) [kA]: 20

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
952090
Number of Poles
1
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Lightning Arrester Type 2 1P 20kA 1.5kV Polish

  • Maximum continuous operating voltage AC [V]: 275
  • Maximum continuous DC operating voltage [V]: 350
  • Protection level [V]: 1.25
  • Connected cable cross-section (flexible, multi-stranded) [mm2]: up to 25, from 1.5
  • Rigid cable cross-section (single wire, multi-wire) [mm2]: up to 35, from 1.5
  • Module size: 1
  • Mounting method: DIN rail 35 mm
  • Activation indicator on the visual device
  • Network configuration: TN
  • Nominal discharge current - peak value (8/20) [kA]: 20

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
952090
Number of Poles
1
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
