Tts Toroidal Transformer 35 Z 230 24V 35VA 17124-9999
Misc Electronics

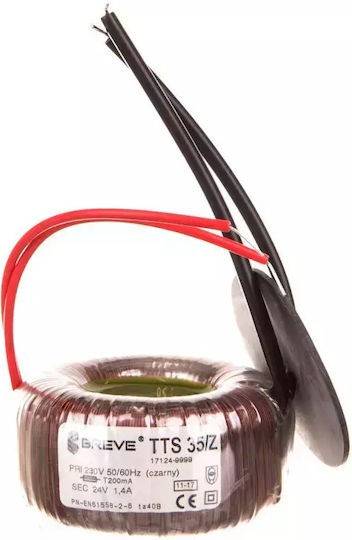

Tts Toroidal Transformer 35 Z 230 24V 35VA 17124-9999

The TTS 35/Z toroidal transformer converts 230 V to 24 V and is primarily intended for integration into power supply circuits for electronic devices and for powering low-voltage lighting systems. It...

The TTS 35/Z toroidal transformer converts 230 V to 24 V and is primarily intended for integration into power supply circuits for electronic devices and for powering low-voltage lighting systems. It is compact and lightweight, with low power losses and magnetic leakage.

It has Class II insulation and a thermal insulation class of B (130 °C). Its construction...

See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The TTS 35/Z toroidal transformer converts 230 V to 24 V and is primarily intended for integration into power supply circuits for electronic devices and for powering low-voltage lighting systems. It is compact and lightweight, with low power losses and magnetic leakage.

It has Class II insulation and a thermal insulation class of B (130 °C). Its construction complies with standards EN 61558-2-4 and EN 61558-2-6.

  • Type: Toroidal transformer
  • Power: 35 VA
  • Input voltage: 230 V
  • Output voltage: 24 V
  • Protection rating: IP00
  • Maximum ambient temperature: 40 °C
  • Mounting: M5
  • Diameter (D): 68 mm
  • Height (H): 36 mm
  • Length Lp: 100 mm
  • Length Ls: 100 mm
  • Diameter (d): 5.5 mm
  • Weight: 0.5 kg
  • Quantity: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Transformer
Packaging
1 pcs
Operating Voltage
24 V
Ecosystem
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

56,90 €
14,00 €   shipping cost
