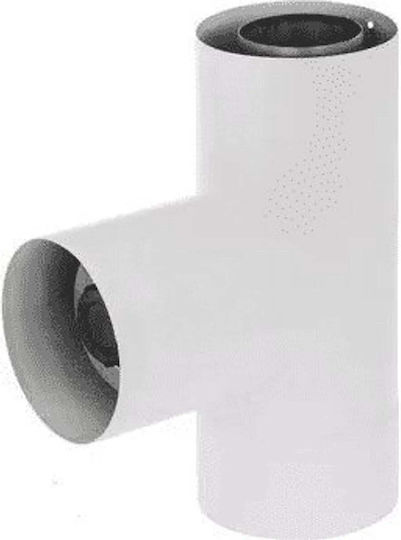

Double T-shirt 80/125-60/100 (nv) with reducer cap, white SPIROFLEX SX-TDNV80/125TDRB

APPLICATION:

• Placed on the bottle for chimney opening inspection.
• Diameter change 80/125-60/100 for boilers with a closed combustion chamber.

ADDITIONAL INFORMATION:

• Boilers with a closed combustion chamber and condensation draw air externally.
• The hermetic combustion chamber isolates the combustion process from the interior of the space.
• Suitable installation in the kitchen or bathroom with absolute safety.
• Exhaust gases with low exit temperature.

TECHNICAL DESCRIPTION:

• Chimney lining for exhaust gas evacuation from boilers with a closed combustion chamber.
• Silicone gasket for tightness.
• Pipes and fittings made of stainless steel with a thickness of 0.5 mm.

INSTALLATION:

• The chimney shaft should be cleaned before installation.
• Use distance clamps at intervals of approximately 2 m.
• In case of shortening the pipe, cut at the appropriate end without damaging the gasket.
• Every chimney and chimney insert is subject to inspection by a chimney sweep.

TECHNICAL DATA:

• Size: Ø80/125 - 60/100
• Material: 1.4404 / DC01
• Color: White
• Sheet thickness: 0.5 mm
• Product type: TEE
• Manufacturer code: SX-TDNV80/125TDRB
