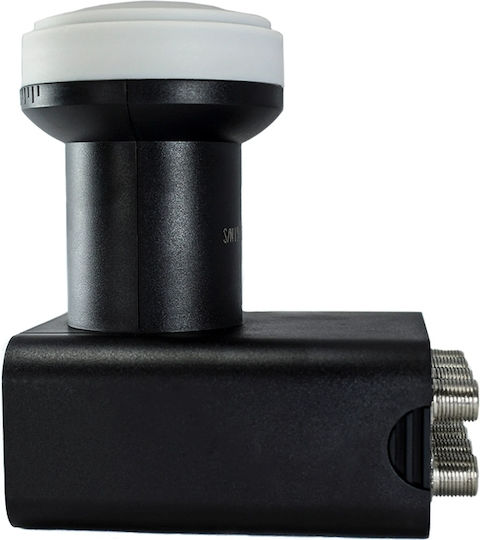

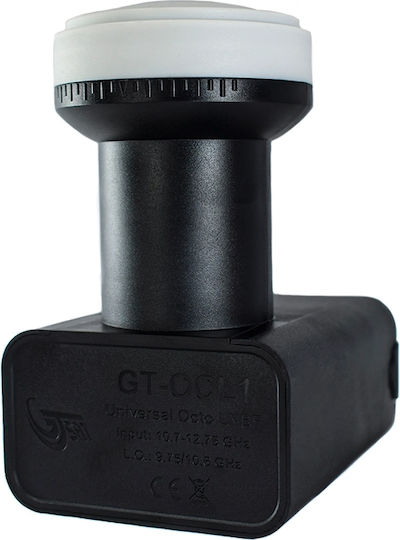

Edision LNB Octo (8 Outputs)
LNB

Edision LNB Octo (8 Outputs) Code: GT-OCL1

Octuple LNB GT-OCL1 for 1 Satellite. Ideal for distributing one satellite to 8 satellite receivers or satellite TV tuners.

Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input:...

Octuple LNB GT-OCL1 for 1 Satellite. Ideal for distributing one satellite to 8 satellite receivers or satellite TV tuners.

Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 60dB (minimum)
  • Low Noise Figure: 0.1 dB
  • Output connector: F-type, 75Ω...
See full description See full description
Review the product
Product report

Description

Description

Octuple LNB GT-OCL1 for 1 Satellite. Ideal for distributing one satellite to 8 satellite receivers or satellite TV tuners.

Technical specifications:

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 60dB (minimum)
  • Low Noise Figure: 0.1 dB
  • Output connector: F-type, 75Ω female
  • L.O. frequency low band: 9.75 GHz, high band: 10.6 GHz
  • L.O. frequency stability: ± 0.5 MHz
  • DC consumption: 180mA
  • Operating voltage: Vertical: 11...14 Vdc, Horizontal: 16...20 Vdc
  • Band transition: Low band: 0 Hz, High band: 22 KHz ± 4 KHz
  • Operating ambient temperature: -40°C...+65°C
  • Storage ambient temperature: -20°C ... +70°C
