Radiator body with discreet and modern design, equipped with an integrated thermostatic valve and child-friendly rounded edges.

Novello radiators are made from high-grade cold steel according to EN 442-1, with side protections and a superior grill cover. They form a comprehensive thermal unit.

The curvature of the panel sheet appears every 33.3 millimeters. On the internal sides of the hydraulic channels, the conventional sheet is welded. The exterior surface treatment includes degreasing, iron phosphating, passivation, washing, and preparation through electrodepositing according to DIN 55900 part 1 and baking.

The final surface treatment includes high-quality electrostatic painting according to DIN 55900 part 2 and rebaking. Color: white Stelrad 9016.

The radiators are equipped with a full Monclac support set, allowing the radiator to tilt and for comfortable installation. They constitute a unit with an integrated valve system, valve (without thermostat) with integrated caps and air vent.

They are packaged in thermal packaging with cardboard edge covers, which include the supports. The construction meets BAGUV safety requirements.

• Emission quality according to DIN ISO 9002.
• Thermal output tested according to EN 442.
• Connections: 6x 1/2".
• Connection: from below or from the side on the right or left.
• Construction pressure: 10 bar.
• Heat transfer temperature: hot water up to 110°C.
• Type: 22.
• Height: 600mm.
• Length: 600mm.
• Depth: 100mm.

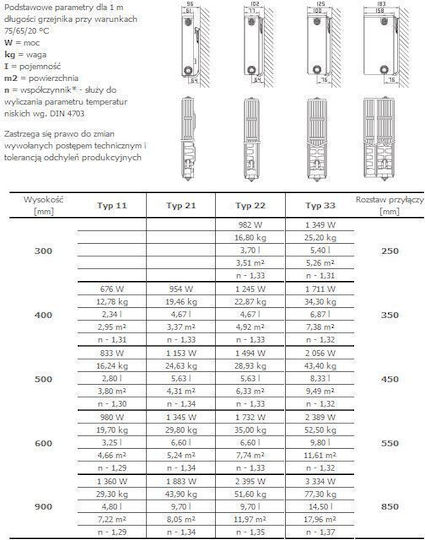

• Power: 75/65/20°C: 1039W, 70/55/20°C: 837W, 55/45/20°C: 526W.
