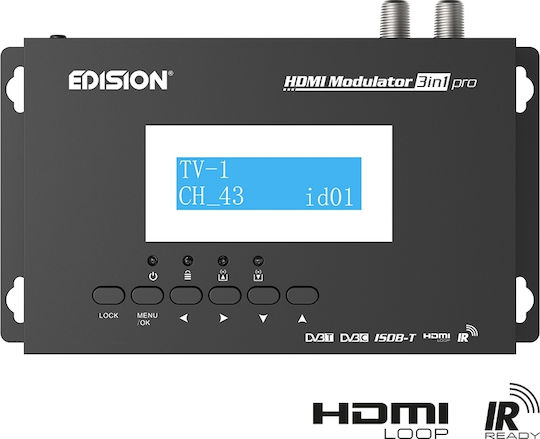

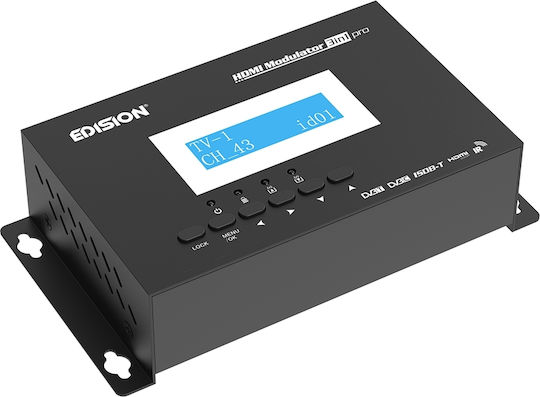

- Digital single-channel HDMI Modulator to DVB-T, DVB-C or ISDB-T with HDMI-loop output & IR Tx
- SIGNAL INPUT: 1x HDMI v1.4a
- RF SIGNAL OUTPUT: 1 x Terrestrial Digital DVB-T, ISDB-T or Cable DVB-C MPEG4
- DVB-T Frequency Range: VHF (CH.5-12) & UHF (CH.21-69)
- ISDB-T Frequency Range: VHF (CH.7-13) & UHF (CH.14-69)
- DVB-C Frequency Range: 47-862 MHz
- Features RF loop
- Features HDMI loop output
- IR Extension System, via the built-in infrared transmitter IR Tx
- High resolution Video signal FULL HIGH DEFINITION up to 1080p 60FPS
- RF output signal level: Factory set at 90 dBμV, with option to increase up to +6 dBμV or decrease up to -14 dBμV
- MER more than 35dB
- Symbol Rate: Up to 31.668 MBPS
- Bandwidth: 6MHZ, 7MHZ, 8MHZ
- Video Encoding: MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, [email protected]
- Audio Encoding: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- CPU Processor: 800MHz 32Bit ARM9 CPU
- DDRIII Memory 16bit 1GBit/s (Built-in) & NOR Flash 32Mbit
- Quick Pre-Config operation / 50 ready & selectable IDs
- Backup Config File (CFG) function, export to USB, easy upload to Modulator.
- Software upgrade via USB
- Ports/Sockets: RF IN, RF OUT, IR OUT, USB, HDMI IN, HDMI OUT, DC 5V/2.0A, GROUND
- LCD screen with standby function
- 6 Screen Buttons: Lock, Menu/OK, Left/Right Select, Down/Up Select
129
90
€
