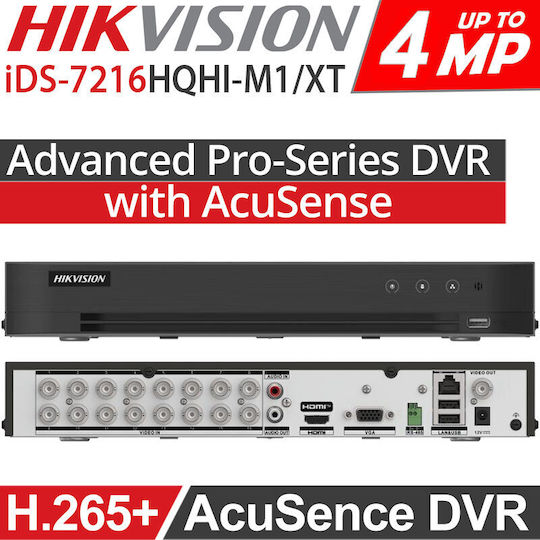

Hikvision DVR HVR iDS-7216HQHI-M1/XT
Surveillance Video Recorders

Hikvision DVR HVR iDS-7216HQHI-M1/XT

Key features:

  • Support for 16 analog channels
  • Video compression: H.265 Pro+
  • Outputs: HDMI 4K & VGA 1080p
  • Motion Detection for 16 channels
  • Disk slot: 1 x 12TB
  • Ports: 1xEthernet, 3xUSB, 1xRS485
See full description

  • Type

    HVR

    Combination of NVR and DVR, supports both analog and IP cameras simultaneously.

  • Resolution

    Full HD+

    A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    256

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
Product report

Description

Description

HIKVISION iDS-7216HQHI-M1/XT - Hybrid (penta-brid) recorder from the HQHI series. It features 16 HDTVI inputs of any series, with 3K/5MP to 720p resolution, CVI 5MP/4MP/1080p/720p, AHD 5MP/4MP/1080p/720p, and common analog cameras (CVBS) with auto detection. Supports up to 24 IP cameras up to 6MP, video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264 and total Bit Rate 256 Mbps.

Includes:

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution 1920x1080
  • Recording per camera 12fps @ 3K lite / 5MP lite or 15fps @ 4MP lite / 1080p or 25fps (real time) @ 1080p lite
  • 25fps (real time) for each IP camera
  • HDD slots 1 x 12TB
  • 16 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • 1 audio input and 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Capabilities

The HIKVISION iDS-7216HQHI-M1/XT is a hybrid (penta-brid) HQHI recorder with 16 HDTVI inputs and support for up to 24 IP cameras with resolution up to 6MP. It supports multiple video compression formats (H.265 Pro+, H.265 Pro, H.264+, H.264) with a total bitrate of 256 Mbps. It features a 4K HDMI output and 1080p VGA output, recording capability up to 25fps per camera, motion detection on 16 channels, perimeter protection on 8 channels, and face recognition on 4 channels. It includes audio over coax, 1 audio input and 1 audio output, 1000 Ethernet port, 3 USB ports, and RS485. It supports 1 hard drive up to 12TB and consumes 24W, with dimensions of 320x240x48 mm.

Features

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution 1920x1080
  • Recording per camera 12fps @ 3K lite / 5MP lite or 15fps @ 4MP lite / 1080p or 25fps (real time) @ 1080p lite
  • 25fps (real time) for each IP camera
  • Disk slots 1 x 12TB
  • 16 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • 1 audio input and 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
HVR

Type

HVR
Combination of NVR and DVR, supports both analog and IP cameras simultaneously.
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Εισερχόμενο Εύρος Ζώνης
256 Mbps

Εισερχόμενο Εύρος Ζώνης: 256

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Θύρες
VGA, HDMI, USB, Alarm Input

Θύρες

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

HIKVISION iDS-7216HQHI-M1/XT - Hybrid (penta-brid) recorder from the HQHI series. It features 16 HDTVI inputs of any series, with 3K/5MP to 720p resolution, CVI 5MP/4MP/1080p/720p, AHD 5MP/4MP/1080p/720p, and common analog cameras (CVBS) with auto detection. Supports up to 24 IP cameras up to 6MP, video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264 and total Bit Rate 256 Mbps.

Includes:

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution 1920x1080
  • Recording per camera 12fps @ 3K lite / 5MP lite or 15fps @ 4MP lite / 1080p or 25fps (real time) @ 1080p lite
  • 25fps (real time) for each IP camera
  • HDD slots 1 x 12TB
  • 16 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • 1 audio input and 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Capabilities

The HIKVISION iDS-7216HQHI-M1/XT is a hybrid (penta-brid) HQHI recorder with 16 HDTVI inputs and support for up to 24 IP cameras with resolution up to 6MP. It supports multiple video compression formats (H.265 Pro+, H.265 Pro, H.264+, H.264) with a total bitrate of 256 Mbps. It features a 4K HDMI output and 1080p VGA output, recording capability up to 25fps per camera, motion detection on 16 channels, perimeter protection on 8 channels, and face recognition on 4 channels. It includes audio over coax, 1 audio input and 1 audio output, 1000 Ethernet port, 3 USB ports, and RS485. It supports 1 hard drive up to 12TB and consumes 24W, with dimensions of 320x240x48 mm.

Features

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution 1920x1080
  • Recording per camera 12fps @ 3K lite / 5MP lite or 15fps @ 4MP lite / 1080p or 25fps (real time) @ 1080p lite
  • 25fps (real time) for each IP camera
  • Disk slots 1 x 12TB
  • 16 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • 1 audio input and 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
HVR

Type

HVR
Combination of NVR and DVR, supports both analog and IP cameras simultaneously.
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Εισερχόμενο Εύρος Ζώνης
256 Mbps

Εισερχόμενο Εύρος Ζώνης: 256

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Θύρες
VGA, HDMI, USB, Alarm Input

Θύρες

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
