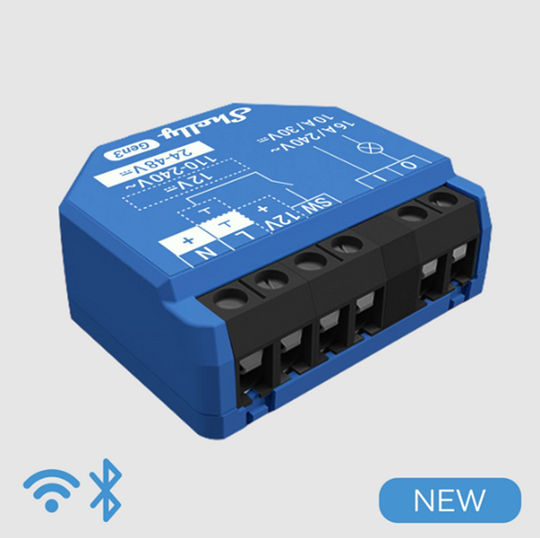

Shelly Gen3 Smart Switch 1 Channel Wi-Fi Bluetooth & RF 16A (With Neutral)
Intermediate Switches

Shelly Gen3 Smart Switch 1 Channel Wi-Fi Bluetooth & RF 16A (With Neutral) Code: SHELLY1GEN3

Key features:

  • Dry Contact Relays
  • Voltage 110-240V AC / 12V-48V DC
  • Maximum Current 16A
  • Gen3 Processor with 8MB Memory
  • Wi-Fi Range Extender Function
See full description

  • Connectivity

    Wi-Fi

    The most common connectivity option for individual switches, as it connects directly to the router.

    Bluetooth

    Wireless connectivity protocol for control from a short distance.

    RF

    Wireless control via radio frequencies.

  • Usage

    Lighting

    For remote control of lamps and lighting fixtures.

    Garage door

    They allow remote control (opening and closing) of garage doors.

  • Compatible Application

    The compatible app that you download to your mobile phone to control the switch remotely.

  • Maximum Load

    It is the maximum amount of current that the switch can withstand without burning out. It shows you how many or how powerful devices you can connect: for simple lights, 10A is enough, while for power-hungry devices (such as a water heater) more Amperes are required.

    For example, a typical LED bulb (e.g. 10W) draws very little current, about 0.04 Amperes. This means that a standard smart switch of 10A is more than sufficient for its operation.

  • Wiring

    With Neutral

    For installations where both power cables are present in the switch box on the wall (phase and neutral).

  • Dry Contact

    Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.

  • Power Measurement

    It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.
  • Dimensions 42x16x15mm

  • Smart Ecosystem

    Alexa

    The Amazon automation platform based on the Alexa voice assistant. It offers voice control capabilities and the creation of "Skills" for connecting and automatically coordinating multiple smart devices.

    Google Home

    Google's platform for managing and controlling smart devices. It allows operation via Google Assistant with voice commands in Greek and the integration of the device into automated routines.
  • See all
Product report

Description

Description

Capabilities

The Shelly 1 Gen3 is a versatile next-generation smart switch, equipped with the advanced ESP-Shelly-C38F processor and increased 8 MB memory. Its main feature is the dry contacts (potential-free), which allow the control of circuits with different voltages, making it ideal for automating boilers, garage doors, and irrigation systems. Its compact design allows for easy installation behind existing switches and sockets, turning traditional devices into smart ones in no time.

Technology and Connectivity

The device operates via Wi-Fi without requiring a central Hub, while the Bluetooth gateway facilitates the rapid addition of new devices to the network. One of the most important improvements of the Gen3 series is the ability to use the device as a Wi-Fi signal booster (Range Extender), improving coverage for other IoT devices in the area. It supports advanced protocols such as MQTT, WebSocket, and Scripting, allowing users to create personalized automations and complex operating scenarios.

Safety and Applications

With a built-in internal temperature sensor for protection against overheating and improved durability at the terminals, the Shelly 1 Gen3 guarantees high reliability and safety. It is compatible with major ecosystems such as Amazon Alexa and Google Home, allowing voice control of your devices. The dry contact support offers the option to control power relays (contactors), making it suitable for both home and professional use in offices.

Specifications

  • Model: Shelly 1 Gen3
  • Power Supply: 110-240 V AC / 24-48 V DC / 12 V DC
  • Maximum Switching Voltage: 240 V AC / 30 V DC
  • Maximum Switching Current: 16 A (AC) / 10 A (DC)
  • Processor: ESP-Shelly-C38F (8 MB Flash)
  • Wireless Connection: Wi-Fi 802.11 b/g/n & Bluetooth 4.2
  • Dimensions: 37 x 42 x 16 mm
  • Weight: 26 g
  • Operating Temperature: -20°C to 40°C
  • Sensors: Internal temperature sensor
  • Functions: Scripting, Webhooks, MQTT, LAN Control, Range Extender
  • Compatibility: Shelly Smart Control, Alexa, Google Home, Home Assistant

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
SHELLY1GEN3

Specifications

Switch Type
Smart Switch
Number of Channels
1

Number of Channels

Indicates how many different lamps or devices the switch can control independently. For example, a 1-channel switch controls one lighting circuit, while a 4-channel switch can manage up to four different devices from the same unit.
Usage
Lighting, Garage door

Usage

Lighting

For remote control of lamps and lighting fixtures.

Garage door

They allow remote control (opening and closing) of garage doors.
Dimensions (Spec Summary)
42x16x15mm

Smart Attributes

Smart Ecosystem
Alexa, Google Home, SmartThings

Smart Ecosystem

Alexa

The Amazon automation platform based on the Alexa voice assistant. It offers voice control capabilities and the creation of "Skills" for connecting and automatically coordinating multiple smart devices.

Google Home
Google's platform for managing and controlling smart devices. It allows operation via Google Assistant with voice commands in Greek and the integration of the device into automated routines.
Connectivity
Wi-Fi, Bluetooth, RF

Connectivity

Wi-Fi

The most common connectivity option for individual switches, as it connects directly to the router.

Bluetooth

Wireless connectivity protocol for control from a short distance.

RF

Wireless control via radio frequencies.

Additional Features

With Remote Control
No

With Remote Control

It allows you to control the switch remotely with a remote control, without needing your smartphone.
Maximum Load
16 A

Maximum Load

It is the maximum amount of current that the switch can withstand without burning out. It shows you how many or how powerful devices you can connect: for simple lights, 10A is enough, while for power-hungry devices (such as a water heater) more Amperes are required.

For example, a typical LED bulb (e.g. 10W) draws very little current, about 0.04 Amperes. This means that a standard smart switch of 10A is more than sufficient for its operation.
Wiring
With Neutral

Wiring

With Neutral

For installations where both power cables are present in the switch box on the wall (phase and neutral).
Compatible Application
Shelly Smart Control

Compatible Application

The compatible app that you download to your mobile phone to control the switch remotely.

Features

Dimmer
No

Dimmer

It allows you to adjust the brightness of the lighting instead of simple on/off operation. Bulbs that support dimmable function are required.
Dry Contact
Yes

Dry Contact

Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.
Consumption Measurement
Yes

Consumption Measurement

It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
