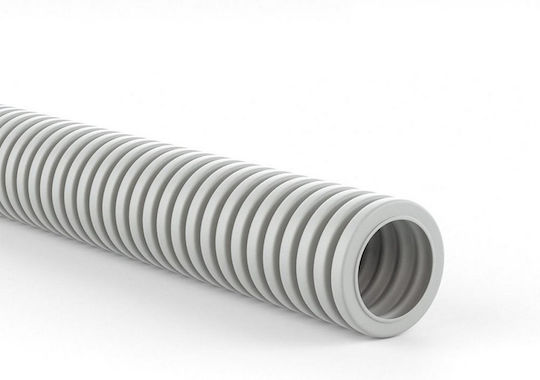

The flexible corrugated conduit (spiral) MEDIFLEX IAS Ø20 2002920 KOUVIDIS is made from high-quality plastic raw materials, offering strong impact resistance (2J) at low temperatures (-25°C), ensuring safety in electrical installations.

It is part of the MEDISOL – MEDIFLEX conduit system and connects with all CONDUR fittings, such as bends, couplings, collars, connectors, and junction boxes.

Application field: Intended for surface-mounted or embedded electrical installations with moderate mechanical requirements and increased protection measures, such as parking stations, commercial buildings, warehouses, and wooden constructions.

Specifications:

• Nominal diameter: Based on outer diameter (DN/OD)
• Degree of tightness: min IP 65
• Compression resistance: 750Nt/5cm
• Impact resistance: 2J (at -25°C)
• Minimum application temperature: -25°C
• Maximum application temperature: +60°C
• Flexible
• Resistance to the ingress of solid objects: min IP65
• Resistance to water ingress: min IP65
• Corrosion resistance: Not applicable
• Flame propagation resistance: Does not propagate flame
• Raw material: Special stabilized thermoplastic U-PVC free of heavy metals (RoHS)
• Aging resistance: Resistant to solar radiation (UV)
• Antistatic technology: Protection against static electricity

Color: RAL 7035 Light gray
