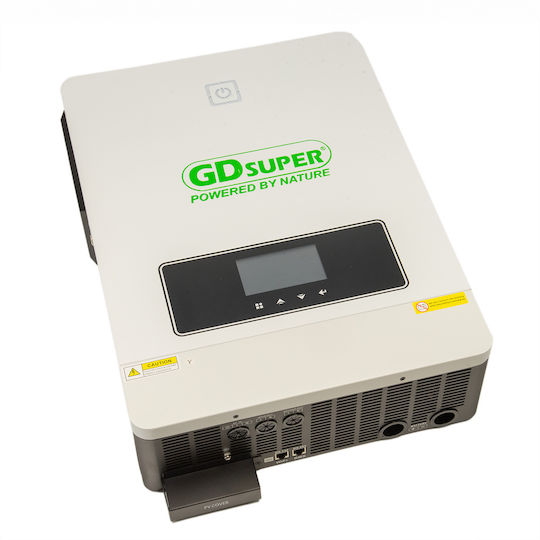

The Gdsuper inverter is single-phase and produces a pure sine wave. It manages charging from solar panels, the grid, or a generator, and supplies AC loads. It supports operation with or without a battery, with a choice of solar or grid and inverter priority.

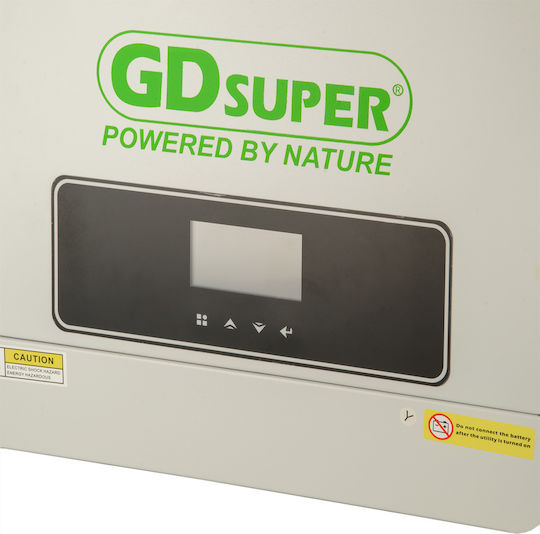

MPPT tracking efficiency is at least 99.5%, while PFC technology is used for AC-to-DC charging. Battery charging and discharging current, as well as grid charging current, are adjustable via the 4.2-inch LCD screen. It features overvoltage and reverse-connection protection, while remote control via Wi-Fi or GPRS is optional.

• Type: Pure sine wave
• Rated power: 8200 W
• Power supply: Single-phase
• Maximum PV input power: 8200 W
• Maximum solar charging current: 160 A
• DC voltage: 360 V / 500 V
• Start-up voltage: 90 V / 120 V DC
• DC voltage range: 90–450 V
• Number of MPPTs: 1
• Maximum MPPT input current: 27 A
• Maximum conversion efficiency: 98%
• Dual-load output power: 8200 W
• Maximum main load power: 8200 W
• Maximum secondary load power in battery mode: 2733 W
• Main load cut-off voltage: 44 V DC
• Main load recovery voltage: 54 V DC
• AC output voltage: 120–140 V AC / 180 V AC
• AC input voltage range: 90–280 V AC
• Maximum AC input current: 40 A
• Operating frequency: 50/60 Hz
• Peak power: 16400 W
• AC output voltage in battery mode: 220/230/240 V AC
• Charger nominal DC voltage: 48 V
• Maximum charging current: 160 A
• Communication interfaces: RS232, wireless network, GPRS, LCD
• Operating temperature: -10–50 °C
• Weight: 14 kg
