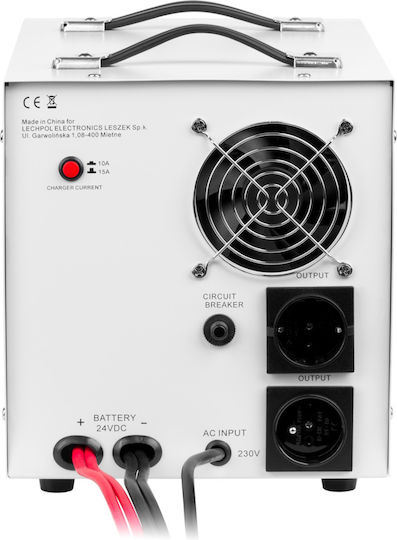

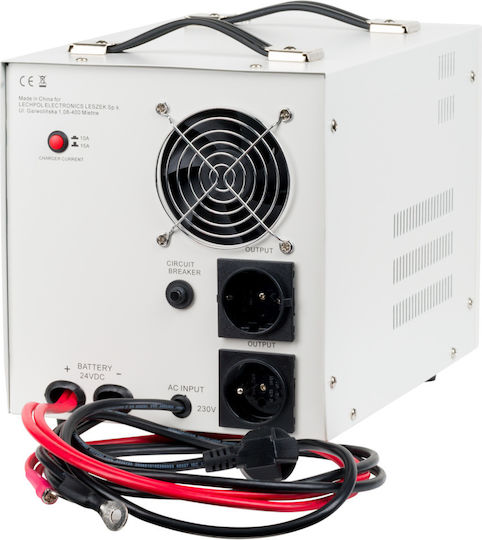

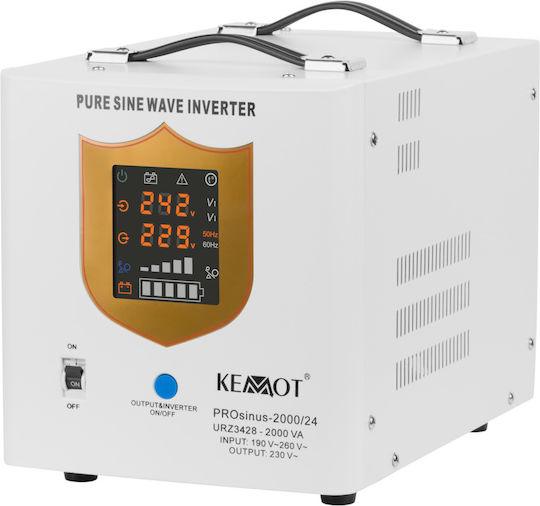

The Kemot URZ3428 inverter is a single-phase pure sine wave inverter with a rated power of 1400 W. It functions as an uninterruptible power supply, rectifier and inverter, while the LED display shows operating status, voltage and load. It is suitable for boilers and heating systems, televisions and RTV equipment, refrigerators and household appliances, power tools and office equipment.

• Type: Pure sine wave
• Rated power: 1400 W
• Rated input voltage: 24 V DC
• Maximum battery voltage: 30 V DC
• Input voltage range: 190–260 V AC
• Input frequency: 45–60 Hz
• Output voltage: 230 V AC ±5% / 230 V AC ±3% in inverter mode
• Output frequency: 50/60 Hz ±0.5 Hz
• Output efficiency: ≥85% (DC to AC)
• Battery charging current: 10 A / 15 A
• Battery capacity: 50–300 Ah, 100 Ah recommended
• Charging time: 4–14 hours, depending on battery capacity
• Functions: Uninterruptible power supply, rectifier and inverter
• Display: LED with operating status, voltage and load indicators
• Protections: Overload, short circuit, overvoltage and undervoltage protection
• Power supply: Single-phase
• Operating temperature: 0–40 °C
• Air humidity: 10–90%
