Electric Car Chargers

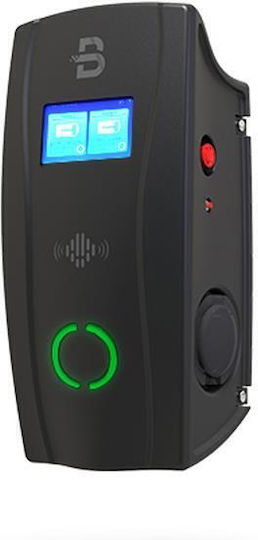

Eurolamp Beny Wall Mounted Three-Phase Charger 22kW with Built-in Cable 5m Type 2

The Eurolamp Beny three-phase wall-mounted electric vehicle charger has a charging power of 22 kW and operates on a 400 V AC system. The integrated Type 2 cable is 5 m long. Charging can be started...

The Eurolamp Beny three-phase wall-mounted electric vehicle charger has a charging power of 22 kW and operates on a 400 V AC system. The integrated Type 2 cable is 5 m long. Charging can be started using an RFID card, via an app, or through plug-and-charge.

The charger supports communication via Wi‑Fi, Bluetooth, and Ethernet, as well as the OCPP 1.6J...

See Description & Specifications See Description & Specifications
1325 42 €
Delivery by Thu, 26 Nov
29,00 €   shipping cost
Sent from Greece
From Lampa-shop 4.8 (26)
Greece
2 pieces
See Car Electronics on the page of Lampa-shop

Learn more about invoicing

Description & Specifications

The Eurolamp Beny three-phase wall-mounted electric vehicle charger has a charging power of 22 kW and operates on a 400 V AC system. The integrated Type 2 cable is 5 m long. Charging can be started using an RFID card, via an app, or through plug-and-charge.

The charger supports communication via Wi‑Fi, Bluetooth, and Ethernet, as well as the OCPP 1.6J protocol. Its IP55 protection rating is complemented by an integrated Type A+ DC 6 mA leakage sensor and protection systems against leakage, overcurrent, grounding faults, overvoltage, undervoltage, overheating, and CP signal anomalies.

  • Installation: Wall-mounted
  • Number of phases: Three-phase
  • Charging power: 22 kW
  • Operating voltage: 400 V AC
  • Current: 32 A
  • Port and cable type: Type 2
  • Integrated cable: Yes, 5 m long
  • Access control: RFID
  • Connectivity: Wi‑Fi, Bluetooth, Ethernet
  • Communication protocol: OCPP 1.6J
  • App: Z-BOX
  • Meter: MID
  • Leakage sensor: Type A+ DC 6 mA
  • Protection systems: Leakage, overcurrent, grounding, overvoltage, undervoltage, contactor contact, reverse neutral and phase connection, overheating, and CP signal anomaly
  • Protection rating: IP55
  • Operating temperature: -25 °C to 50 °C
  • Frequency: 50–60 Hz
  • Dimensions: 470 × 225.3 × 177.3 mm (height × width × depth)
  • Weight: 7.5 kg
  • Colour: Black

Manufacturer

Placement
Wall Mounted
Phase Capacity
Three-Phase
Charging Power
22 kW
Current intensity
32 A
Built-in Cable
Yes
Charging Port
Type 2
Cable Length
5 m
Screen
No
Dynamic Load Balancing
-
WiFi
Yes
Bluetooth
Yes
RFID Access Control
Yes
Protection Certification
IP55
Durability
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
