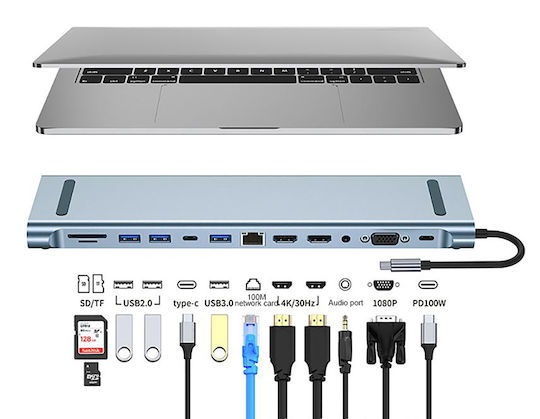

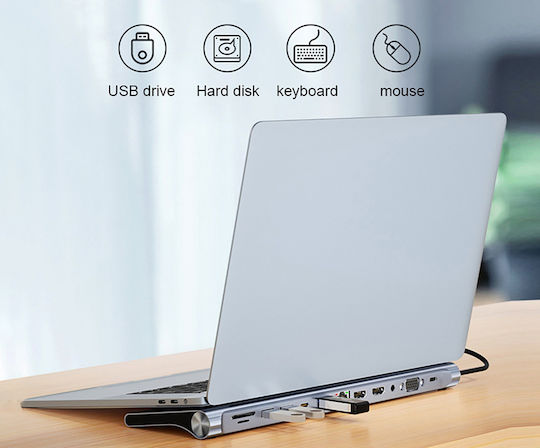

The Powertech BYL-2003U2 Laptop Docking Station connects to a laptop via USB-C and also functions as a stand, with non-slip pads for placement beside or underneath the device. It supports MST display extension via HDMI at resolutions up to 4K/30Hz, while the VGA port supports resolutions up to 1080p/30Hz. The USB-C PD port supports charging at up to 100 W, using a 100 W wall charger that is not included.
The housing is made of aluminum. The Ethernet connection supports network speeds of 10/100 Mbps, while data transfer speeds are up to 5 Gbps via USB 3.0 and up to 480 Mbps via USB 2.0.
- Connection: USB-C
- Color: Gray
- Material: Aluminum
- USB-A 3.0 ports: 1
- USB-A 2.0 ports: 2
- USB-C ports: 2, for data transfer and PD
- HDMI ports: 2, HDMI 1.4
- VGA port: 1
- Ethernet port: 1, 10/100 Mbps
- 3.5 mm audio port: 1
- Card reader: For SD and microSD
- Display support: Up to 4K/30Hz via HDMI, with SST and MST
- VGA support: Up to 1080p/30Hz
- PD support: Charging up to 100 W
- Power supply: Via USB
- Cable length: 14 cm
- Dimensions: 280 x 100 x 24 mm
- Weight: 223 g
- Operating system compatibility: Windows 8.1/10, Mac OS 10.10-10.14
- Apple compatibility: Supported
- Connection
- USB-C
- USB
- 1 USB-A 3.0 Port, 1 USB-C PD Port, 2 USB-A 2.0 Ports
- Screen Connections
- 1 VGA Port, 2 HDMI 1.4 Ports
- PowerDelivery (PD)
- Yes
- 4K support
- Yes
- Ethernet
- Yes
- Power
- USB Power Supply
- Audio I/O
- Yes
- Card Reader
- Yes
- Apple support
- Yes
- Peak Power
- 100 W
- Colour
- Grey
