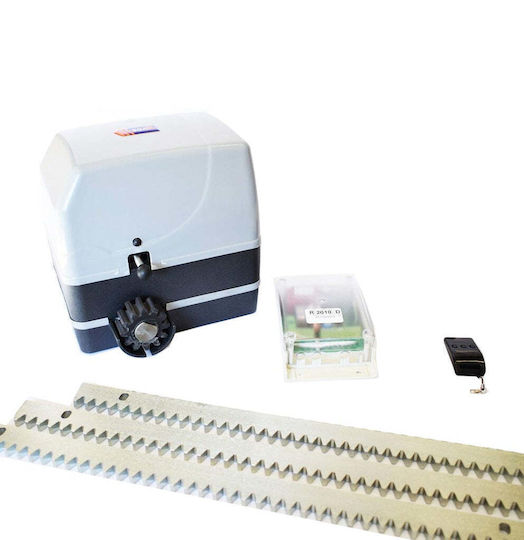

The VDS-SIMPLY-600-ECO-KIT motor kit automates sliding garage doors weighing up to 600 kg. The motor has a power rating of 250 W, operates on 230 VAC and features a non-reversible mechanism with permanent grease lubrication. The package includes an electronic control panel, a remote control and 3 m of metal rack with spacers and screws.

The mechanism supports up to 25 opening and closing cycles per hour for a reference door length of 5 m at 20 °C. The gate leaf speed reaches 10 m/min, while the mechanical limit switches operate using microswitches and a spring.

• Type: For sliding garage doors
• Maximum door weight: 600 kg
• Maximum door length: 3 m
• Motor power: 250 W
• Power supply voltage: 230 VAC
• Motor operating voltage: 230 VAC
• Power supply current: 1.3 A
• Motor speed: 1400 rpm
• Capacitor capacity: 12.5 μF
• Mechanism type: Electromechanical, permanently grease-lubricated and non-reversible
• Internal gears: Metal
• Maximum duty cycle: S3-30% at 20 °C
• Opening and closing cycles per hour: Up to 25 for a reference door length of 5 m at 20 °C
• Maximum gate leaf speed: 10 m/min
• Motor winding thermal protection: 120 °C
• Gear type: Z16 / m4, with 16 teeth
• Limit switch type: Mechanical, with microswitches and a spring
• Release method: Key-operated
• Operating temperature: From -20 °C to +55 °C
• Protection rating: IP-44
• Motor weight: 8 kg
• Motor dimensions: 230 × 210 × 230 mm, including the gear and excluding the mounting base
• Colour: Grey
• Control panel: 1 pc., model R2010D
• Integrated control panel: No
• Remote control: 1 pc., model SM50P NextSystems, pre-programmed
• Safety beacon: 1 pc.
• External antenna: 1 pc.
• Motor: 1 pc., model VDS SIMPLY600
• Rack: 3 m, metal, module 4, with spacers and screws
• Release keys: 2 pcs.
• Mounting base: 1 metal base
• Limit switch activation plates: 2 metal plates
• Fixings: 8×25 DIN912 screws, M8 washers and square snap-in M8 nuts
• User manual: 1 in Greek
• Circuit board technology: SMD
• Compliance: CE
• Country of origin: Italy
