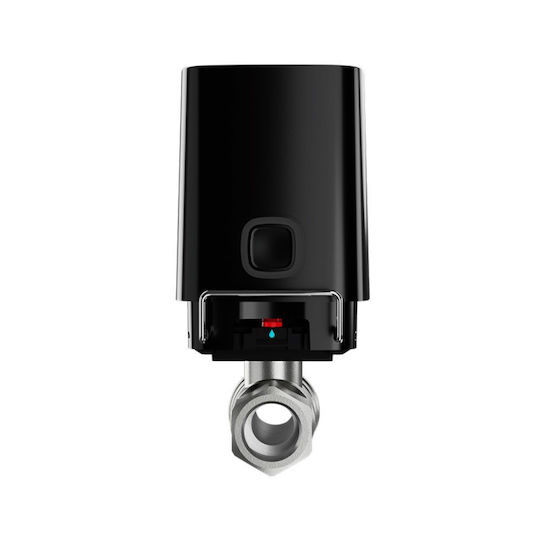

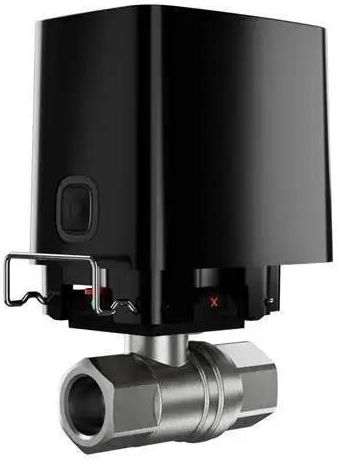

Ajax Systems WaterStop 1 (DN 25) Wireless Water Leak Detector Battery RF
Water Leak Detectors

Ajax Systems WaterStop 1 (DN 25) Wireless Water Leak Detector Battery RF

Key features:

  • Jeweller communication technology
  • Water shut-off time: up to 7 sec
  • Power supply: 4 CR123A batteries
  • Optional power supply 9 to 14V
  • Maximum operating pressure 10 bar
  • Dimensions: 93 x 70 x 95mm
See full description

  • Power Supply

    Battery

    No wires are required for its installation and power supply, as it is powered by a battery.

  • Connectivity

    The wireless protocol supported by the detector for remote control and communication.

  • Compatible Battery

    The type of compatible battery that powers the detector.
  • See all
Review the product
Product report

Description

Description

Ajax WaterStop Jeweller

The Ajax WaterStop Jeweller is an advanced wireless electric valve that ensures the automatic shut-off of the water supply in case of leak detection. It combines a high-quality valve from RuB with a powerful electric actuator that produces a torque of up to 8.5 Nm, capable of closing even a stuck valve. In combination with LeaksProtect detectors, the system cuts off the supply within just 7 seconds, minimizing the risk of serious material damage.

In 3 Size Versions

The device offers full remote control through the Ajax applications, allowing the user to manually shut off the water or schedule automation scenarios. It is possible to cut off the supply when the security system is activated or according to a specific timetable. The actuator is compatible with valves that meet the ISO 5211 standard and is available in three size versions (½", ¾", and 1"), covering every residential or industrial need.

Simple and flexible installation

The installation is simple and flexible, as the activator is placed on the support platform without tools in four possible positions. The device operates autonomously with four pre-installed CR123A batteries that provide up to 3 years of life, while there is the option to connect an external 9–12 V⎓ power supply for continuous operation. In case of a power outage, the batteries act as a backup source, ensuring uninterrupted protection of the area.

Jeweller Technology

The Jeweller technology ensures secure two-way communication with the hub at a range of up to 1,100 meters, using encryption and interference protection. The system features tamper protection, immediately notifying in case of an attempt to detach the activator from the valve. Additionally, it includes a special anti-sabotage clasp, making it suitable for public spaces such as offices and stores.

Maintenance & protections

The device design allows maintenance in hard-to-reach areas without requiring the disassembly of the valve itself from the pipes. The WaterStop protects against overheating and overcurrent, notifying the user via smartphone alerts. Supporting up to 200 detectors and valves in the same system, it is the ideal solution for creating a comprehensive flood protection network in buildings of any scale.

Features

  • Jeweller communication technology
  • Signal range up to 1100 meters
  • Water shut-off time up to 7 seconds
  • Maximum actuator torque 8.5 Nm
  • Battery life up to 3 years
  • Powered by 4 CR123A batteries
  • Optional external power supply 9 to 14 V
  • Compatibility with ISO 5211 standard
  • Operating temperature 0 to +60 degrees Celsius
  • Maximum operating pressure 10 bar
  • Actuator weight 536 grams
  • Actuator dimensions 93 x 70 x 95 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Power Supply
Battery

Power Supply

Battery

No wires are required for its installation and power supply, as it is powered by a battery.
Battery Type
CR123A

Battery Type

The type of compatible battery that powers the detector.
With Siren
No

With Siren

It offers autonomous operation as it incorporates a siren that immediately alerts in case of a leak.
Valve Size
1" (DN 25)

Additional Features

Cable Type
No

Cable Type

Allows the detection of leaks in more hard-to-reach areas, as the cable can be more easily placed in narrow spaces or under appliances.

Smart Attributes

Connectivity
RF

Connectivity

The wireless protocol supported by the detector for remote control and communication.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Ajax WaterStop Jeweller

The Ajax WaterStop Jeweller is an advanced wireless electric valve that ensures the automatic shut-off of the water supply in case of leak detection. It combines a high-quality valve from RuB with a powerful electric actuator that produces a torque of up to 8.5 Nm, capable of closing even a stuck valve. In combination with LeaksProtect detectors, the system cuts off the supply within just 7 seconds, minimizing the risk of serious material damage.

In 3 Size Versions

The device offers full remote control through the Ajax applications, allowing the user to manually shut off the water or schedule automation scenarios. It is possible to cut off the supply when the security system is activated or according to a specific timetable. The actuator is compatible with valves that meet the ISO 5211 standard and is available in three size versions (½", ¾", and 1"), covering every residential or industrial need.

Simple and flexible installation

The installation is simple and flexible, as the activator is placed on the support platform without tools in four possible positions. The device operates autonomously with four pre-installed CR123A batteries that provide up to 3 years of life, while there is the option to connect an external 9–12 V⎓ power supply for continuous operation. In case of a power outage, the batteries act as a backup source, ensuring uninterrupted protection of the area.

Jeweller Technology

The Jeweller technology ensures secure two-way communication with the hub at a range of up to 1,100 meters, using encryption and interference protection. The system features tamper protection, immediately notifying in case of an attempt to detach the activator from the valve. Additionally, it includes a special anti-sabotage clasp, making it suitable for public spaces such as offices and stores.

Maintenance & protections

The device design allows maintenance in hard-to-reach areas without requiring the disassembly of the valve itself from the pipes. The WaterStop protects against overheating and overcurrent, notifying the user via smartphone alerts. Supporting up to 200 detectors and valves in the same system, it is the ideal solution for creating a comprehensive flood protection network in buildings of any scale.

Features

  • Jeweller communication technology
  • Signal range up to 1100 meters
  • Water shut-off time up to 7 seconds
  • Maximum actuator torque 8.5 Nm
  • Battery life up to 3 years
  • Powered by 4 CR123A batteries
  • Optional external power supply 9 to 14 V
  • Compatibility with ISO 5211 standard
  • Operating temperature 0 to +60 degrees Celsius
  • Maximum operating pressure 10 bar
  • Actuator weight 536 grams
  • Actuator dimensions 93 x 70 x 95 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Power Supply
Battery

Power Supply

Battery

No wires are required for its installation and power supply, as it is powered by a battery.
Battery Type
CR123A

Battery Type

The type of compatible battery that powers the detector.
With Siren
No

With Siren

It offers autonomous operation as it incorporates a siren that immediately alerts in case of a leak.
Valve Size
1" (DN 25)

Additional Features

Cable Type
No

Cable Type

Allows the detection of leaks in more hard-to-reach areas, as the cable can be more easily placed in narrow spaces or under appliances.

Smart Attributes

Connectivity
RF

Connectivity

The wireless protocol supported by the detector for remote control and communication.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

379,00 €
14,00 €   shipping cost
