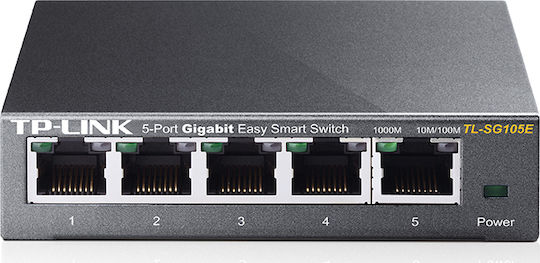

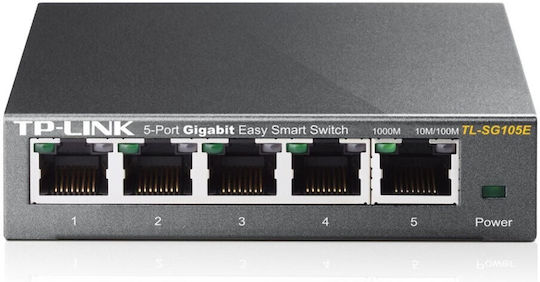

The TP-LINK TL-SG105E v4 switch expands a wired network with 5 Gigabit Ethernet RJ-45 ports for connecting additional devices. It supports network traffic monitoring, traffic prioritization, and VLANs. Installation is plug-and-play, while configuration is performed via a web interface or utility.

For network monitoring, it supports Port Mirroring, Loop Prevention, and Cable Diagnostics. QoS and VLAN features allow traffic prioritization and network segmentation, respectively. Energy-saving technology reduces power consumption by up to 57%.

• Type: Layer 2 unmanaged switch
• Ports: 5 Gigabit Ethernet RJ-45, 10/100/1000 Mbps
• Switching capacity: 7.4 Gbps
• Packet forwarding rate: 7.4 Mpps
• MAC address table: 2,000 entries
• Packet buffer memory: 1.5 Mb
• Jumbo frame size: 15 KB
• Network monitoring: Port Mirroring, Loop Prevention, Cable Diagnostics
• Traffic prioritization: Port-based/802.1p/DSCP QoS
• VLAN: Port-based, tag-based, and MTU VLAN
• Port features: Auto Negotiation, Auto MDI/MDIX
• Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Cables for 10BASE-T: Category 3, 4, or 5 UTP and EIA/TIA-568 100 Ω STP, up to 100 m
• Cables for 100BASE-TX: Category 5 or 5e UTP and EIA/TIA-568 100 Ω STP, up to 100 m
• Cables for 1000BASE-T: Category 5, 5e, 6, or higher UTP and EIA/TIA-568 100 Ω STP, up to 100 m

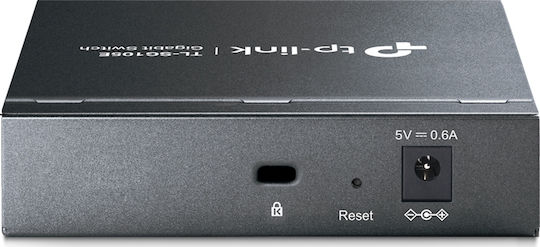

• Power supply: 100–240 V AC, 50/60 Hz
• Maximum power consumption: 2.49 W at 220 V/50 Hz
• Energy saving: Reduces power consumption by up to 57%
• Dimensions: 100 × 98 × 25 mm

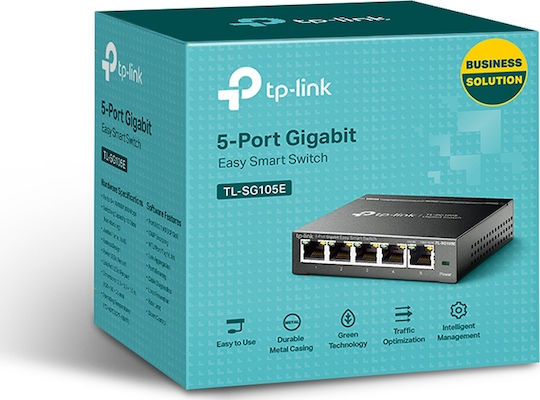

• Package contents: Switch, power cable, installation guide, CD, and rubber feet
