Hikvision DVR iDS-7204HUHI-M1/X
Surveillance Video Recorders

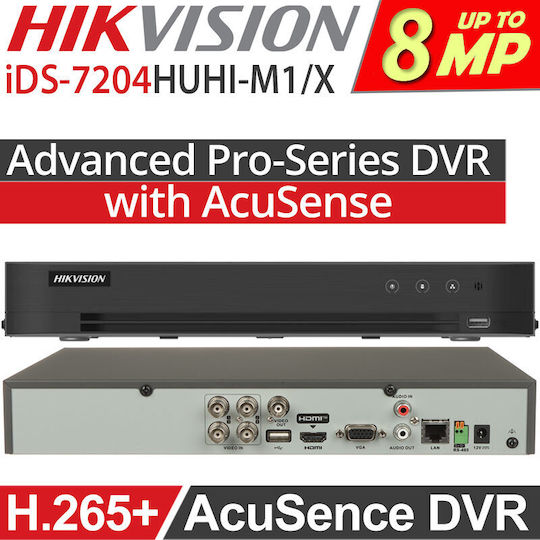

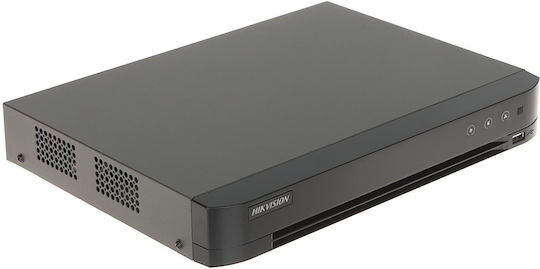

Hikvision DVR iDS-7204HUHI-M1/X

The Hikvision iDS-7204HUHI-M1/X recorder uses AcuSense technology, which is based on a deep learning algorithm to analyse events captured by cameras. It distinguishes between people and vehicles,...

The Hikvision iDS-7204HUHI-M1/X recorder uses AcuSense technology, which is based on a deep learning algorithm to analyse events captured by cameras. It distinguishes between people and vehicles, limiting alerts to these events. It supports 4K analysis and H.265+ video compression.

It accepts 4 analogue video inputs and up to 8 IP inputs, and supports the...

See full description See full description

Top specs

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    96

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

The Hikvision iDS-7204HUHI-M1/X recorder uses AcuSense technology, which is based on a deep learning algorithm to analyse events captured by cameras. It distinguishes between people and vehicles, limiting alerts to these events. It supports 4K analysis and H.265+ video compression.

It accepts 4 analogue video inputs and up to 8 IP inputs, and supports the HDTVI, AHD, HDCVI and CVBS standards. Playback is synchronised across 4 channels, and the network connection supports ONVIF.

  • Channels: 4
  • Resolution: 4K
  • Incoming bandwidth: 96 Mbps
  • Analysis technology: AcuSense
  • Detection: People and vehicles
  • Video compression: H.265+
  • Hard drive bays: 1 SATA
  • Maximum capacity per drive: 12 TB
  • Network: ONVIF, 1 RJ45 port, 10/100 Mbps
  • Video outputs: HDMI, VGA, CVBS
  • USB ports: 2 USB 2.0
  • Video inputs: 4 analogue, up to 8 IP
  • Supported input standards: HDTVI, AHD, HDCVI, CVBS
  • Simultaneous playback: 4 channels
  • Audio input: 4 RCA channels
  • Audio output: 1 RCA channel
  • Power supply: 12 V DC
  • Power consumption: up to 10 W
  • Operating temperature: -10 °C to +55 °C
  • Operating humidity: 10%–90%
  • Dimensions: 315 × 242 × 45 mm
  • Weight: up to 1.16 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
96 Mbps

Incoming Bandwidth: 96

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.

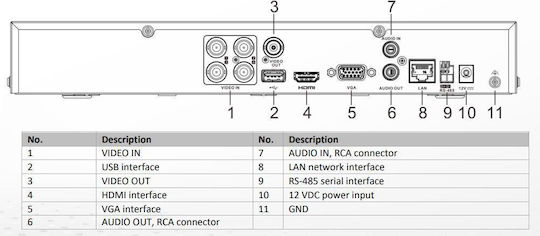

Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Hikvision iDS-7204HUHI-M1/X recorder uses AcuSense technology, which is based on a deep learning algorithm to analyse events captured by cameras. It distinguishes between people and vehicles, limiting alerts to these events. It supports 4K analysis and H.265+ video compression.

It accepts 4 analogue video inputs and up to 8 IP inputs, and supports the HDTVI, AHD, HDCVI and CVBS standards. Playback is synchronised across 4 channels, and the network connection supports ONVIF.

  • Channels: 4
  • Resolution: 4K
  • Incoming bandwidth: 96 Mbps
  • Analysis technology: AcuSense
  • Detection: People and vehicles
  • Video compression: H.265+
  • Hard drive bays: 1 SATA
  • Maximum capacity per drive: 12 TB
  • Network: ONVIF, 1 RJ45 port, 10/100 Mbps
  • Video outputs: HDMI, VGA, CVBS
  • USB ports: 2 USB 2.0
  • Video inputs: 4 analogue, up to 8 IP
  • Supported input standards: HDTVI, AHD, HDCVI, CVBS
  • Simultaneous playback: 4 channels
  • Audio input: 4 RCA channels
  • Audio output: 1 RCA channel
  • Power supply: 12 V DC
  • Power consumption: up to 10 W
  • Operating temperature: -10 °C to +55 °C
  • Operating humidity: 10%–90%
  • Dimensions: 315 × 242 × 45 mm
  • Weight: up to 1.16 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
96 Mbps

Incoming Bandwidth: 96

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
