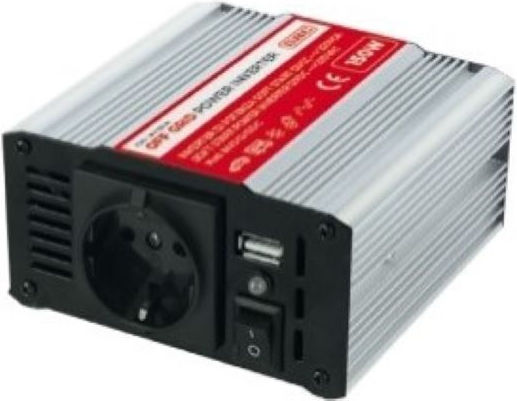

The GBC 251109 power inverter converts the voltage from a 24 V battery system to 220–240 V AC, with a modified sine wave. It delivers 150 W of continuous power and up to 300 W of peak power, while...

The GBC 251109 power inverter converts the voltage from a 24 V battery system to 220–240 V AC, with a modified sine wave. It delivers 150 W of continuous power and up to 300 W of peak power, while SoftStart technology smooths the inrush current of connected devices. The Schuko socket and USB port support the connection of AC and low-voltage devices.

The...

See full description See full description
37,75 €
32 90 €
-12%
price drop
Lowest price '26
Delivery by Thu, 26 Nov
14,00 €   shipping cost
Sent from Greece
From Lynk.gr 4.9 (15)
Greece
4 pieces
See Industrial Materials on the page of Lynk.gr

Learn more about invoicing

Description

Description

The GBC 251109 power inverter converts the voltage from a 24 V battery system to 220–240 V AC, with a modified sine wave. It delivers 150 W of continuous power and up to 300 W of peak power, while SoftStart technology smooths the inrush current of connected devices. The Schuko socket and USB port support the connection of AC and low-voltage devices.

The alligator clips connect directly to the battery terminals. The aluminium housing is paired with an internal fan to dissipate heat, while the device features a low-battery alarm, automatic shutdown for undervoltage and overvoltage, and a built-in 20 A fuse.

  • Type: DC/AC inverter
  • Input voltage: 20–30 V DC
  • Output voltage: 220–240 V AC
  • Frequency: 50/60 Hz ±0.5 Hz
  • Waveform: Modified sine wave
  • Rated power: 150 W
  • Peak power: 300 W
  • Input current: 6.25 A
  • Input connection: Alligator clips
  • Output connections: Schuko socket and USB port
  • Minimum battery capacity: 10 Ah
  • Fuse: 1 × 20 A
  • Maximum efficiency: 0.9
  • Low-battery alarm: 21.5–23 V DC
  • Undervoltage shutdown: 20.5–22 V DC
  • Overvoltage shutdown: 31 V DC
  • Protection rating: IP20
  • Fan: 1
  • Material: Aluminium
  • Colour: Silver
  • Dimensions: 14.3 × 12.2 × 5.2 cm
  • Weight: 0.85 kg
  • Package contents: 1 power inverter
