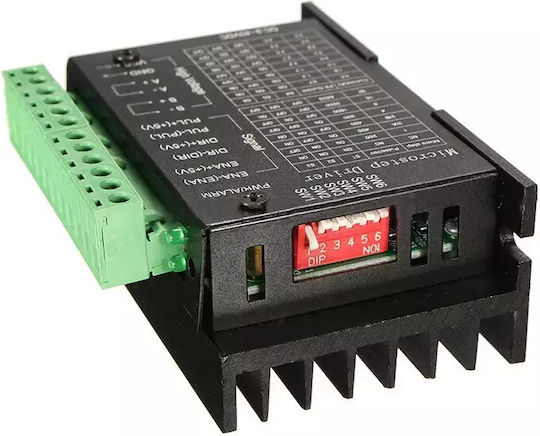

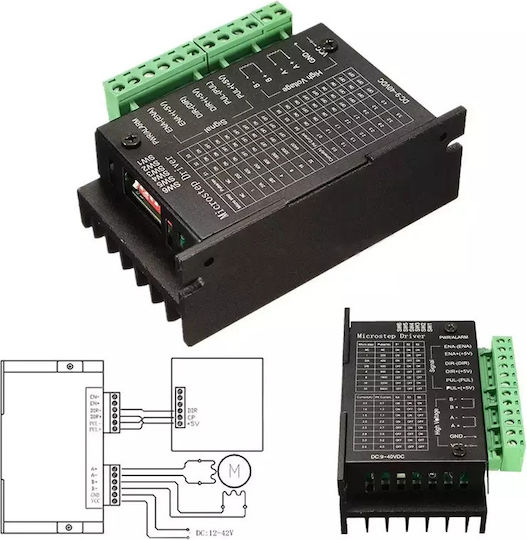

Motor Driver 12-000B331
Misc Electronics

Motor Driver 12-000B331

Specifications:

  • Number of Axes: 1
  • Stepper Motor Driver Type: TB6600
  • Phase: 2/4
  • Supply Voltage: 36V
  • Current: 9.7A
  • Capability: 350W
  • Input Voltage: 9-40V DC
  • Maximum Driving Current: 4A
  • Separation...

Specifications:

  • Number of Axes: 1
  • Stepper Motor Driver Type: TB6600
  • Phase: 2/4
  • Supply Voltage: 36V
  • Current: 9.7A
  • Capability: 350W
  • Input Voltage: 9-40V DC
  • Maximum Driving Current: 4A
  • Separation Frequency: 20KHZ
  • Dimensions: 9.6 x 7.1 x 3.6cm
  • Division Options: 1, 2/A, 2/B, 4, 8, 16, 32
  • Material: Plastic
  • Color: Random
  • Features:
    • Bipolar constant current chopper...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Specifications:

  • Number of Axes: 1
  • Stepper Motor Driver Type: TB6600
  • Phase: 2/4
  • Supply Voltage: 36V
  • Current: 9.7A
  • Capability: 350W
  • Input Voltage: 9-40V DC
  • Maximum Driving Current: 4A
  • Separation Frequency: 20KHZ
  • Dimensions: 9.6 x 7.1 x 3.6cm
  • Division Options: 1, 2/A, 2/B, 4, 8, 16, 32
  • Material: Plastic
  • Color: Random
  • Features:
    • Bipolar constant current chopper
    • High-speed signal isolation with opto-coupler
    • Automatic half-step for heat reduction
    • Ability to resist high-frequency interference
    • Input reverse voltage protection
    • Overheating protection
    • Over-current protection
    • Short-circuit protection
    • DIP switch controls the current
  • Temperature Range: -10-45 Celsius
  • Size: 96(L) x 56(W) x 33(H)mm
  • Weight: 201g
