Main System

• Mobile App Support: SriHome App for iOS and Android, supporting remote access
• Processor: High-performance multi-core processor

Camera Specifications

• Sensor: 1/2.7", 4 Megapixel progressive scan CMOS
• Image Compression: H.265
• Lens: Focal Length: 4mm, 2MP
• Field of View: Horizontal: 80°, Vertical: 58°, Diagonal: 110°
• Starlight lens for low light conditions
• Resolution: 1920P (2560x1920), VGA (480x360)
• Frame Rate: 15fps - 25fps
• Minimum Illumination: 0.01 Lux / F1.2 (with infrared lighting)
• Filter Switch: Built-in IR Cut, no color deviation in indoor or outdoor use
• Zoom: 3x digital zoom

Audio

• Protocol: G711U

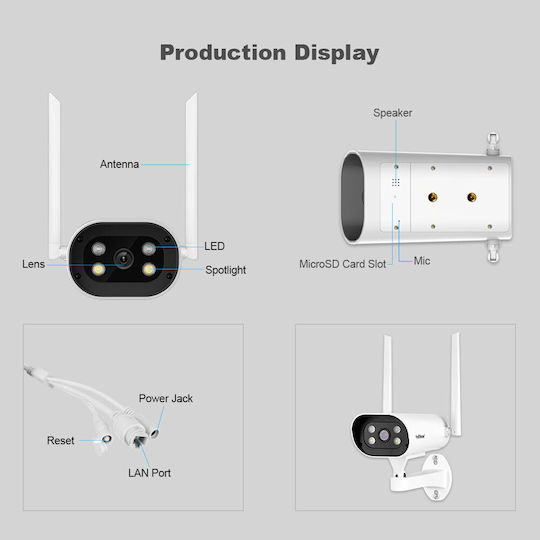

• Built-in microphone & speaker, supports two-way audio

Alarm System

• Alarm Types: Motion detection alarm, Human shape detection
• Alarm Notification: Sending notifications to smartphone

Night Vision Functions

• Smart Mode: Black and white night vision
• Color Mode: Activating floodlights for outdoor lighting
• Infrared Mode: Switch to black and white night vision

Security and Privacy

• Privacy Protection: Default admin access for the first user
• Privacy Block: Ability to set up to 4 privacy zones

Network Functions

• Ethernet: RJ45 100M network interface
• Wireless Network: 2.4G (11b/g/n) and 5G (11a/n/ac)
• Access Point (AP): Direct camera connection to phone
• Interoperability: Compatible with ONVIF

Software Compatibility

• Mobile App: SriHome App for iOS & Android
• PC Software: CMS, ONVIF, Blue Iris, iSpy

Recording Features

• Recording Functions: Alarm recording, 24/7 recording
• Recording Standards: HD (1440P/1080P/720P) / SD (360P)
• Storage: MicroSD card (Max. 128GB)

Physical and Environmental Features

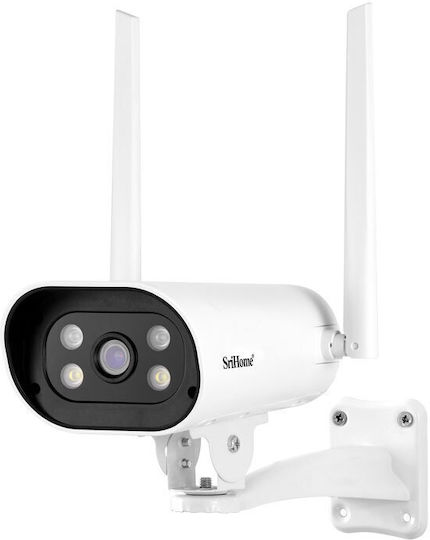

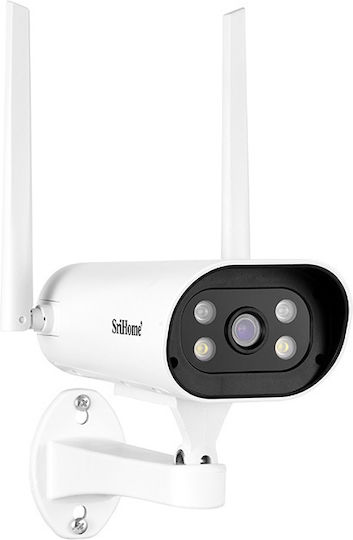

• Product Type: Bullet type, suitable for indoor/outdoor use
• Ingress Protection: IP66
• Power Supply: DC 12V
• Operating Temperature: -10 to +50°C
• Operating Humidity: 10% to 90% RH
• Weight: Net: 280g, Gross: 500g
• Dimensions: 90x80x110 mm (LxWxH)

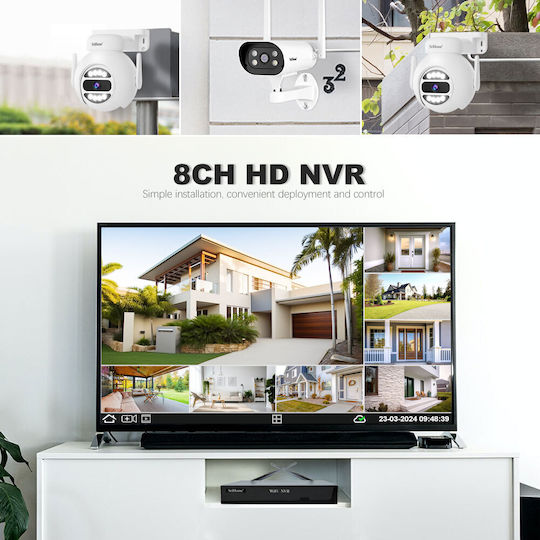

Video Recorder Specifications

• Video Input: Maximum 8 channels
• Video Output: 1 HDMI, 1 VGA
• Compression Format: H.265/H.264
• Encoding Capability: 8x5M/25fps
• Decoding Capability: 1x5M/25fps

Audio

• Two-way audio
• Output: HDMI and 1 AUX interface

Network Management

• WiFi: 2.4G for connection with standard SriHome cameras
• WAN: RJ45 network interface
• Network Services: Support for DHCP, DNS, DDNS, NTP, UPNP

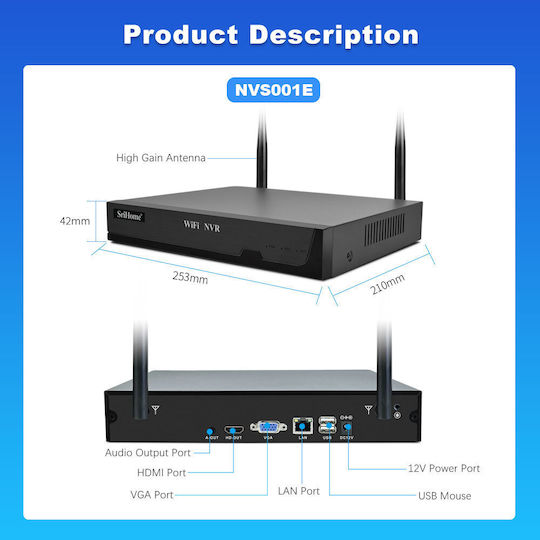

External Interfaces

• Network Interface: One RJ45 network interface
• USB Interface: 2 USB 2.0 ports
• HDMI Interface: 1 HDMI port
• VGA Interface: 1 VGA port
• Audio Interface: 1 audio output AUX interface
• Power Interface: 1 DC 12V 2A
