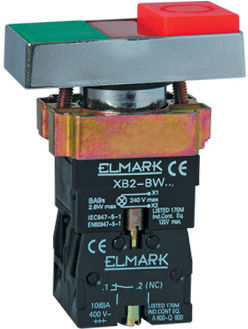

START/STOP BUTTON WITH LED LIGHT EL2-BW 8475 24V

• Isolation voltage: 660V; 50/60Hz
• Surge withstand: 6000V
• Rated current: 6A (230V AC); 0.3A (230V DC)
• IP rating: IP20
• Short circuit protection: 10A gG switch out of circuit
• Mechanical wear resistance: 1x10⁶ switching cycles
• Operating temperature: -20° to 70°C
• Humidity: 35-85% RH
• Cable connection torque: 0.15 Nm
• Conductor cross-section: 1x0.5; 1x0.75; 1x1; 1x1.5; 1x2.5mm²

Installation:

• On a flat metal or plastic surface with a maximum thickness: 4mm
• Opening size: Ø22.5mm

Standards: EN60947-1; EN60947-5-1
