Solar Panels

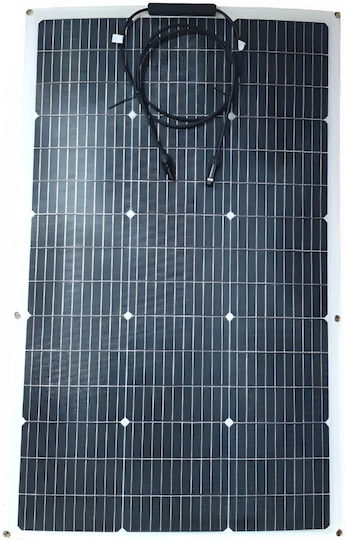

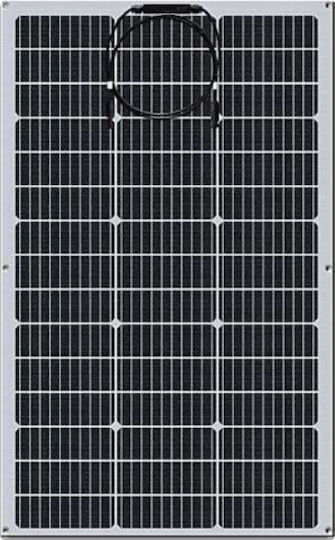

Invictus SRF-MH-100 Monocrystalline Solar Panel 100W 966.5x600x2mm

The Invictus SRF-MH-100 monocrystalline solar panel has a maximum power output of 100 W and a power conversion efficiency of up to 23%. Its semi-flexible construction allows installation on curved...

The Invictus SRF-MH-100 monocrystalline solar panel has a maximum power output of 100 W and a power conversion efficiency of up to 23%. Its semi-flexible construction allows installation on curved surfaces with a bend radius of up to 30°, such as boats, caravans, roofs that cannot support heavy loads, and building façades. It is waterproof, with an IP67...

See full description See full description
110 00 €
Delivery by Mon, 23 Nov
23,00 €   shipping cost
Sent from Greece
From Smart-Cover
Greece
20+ pieces
See Photovoltaics & Wind Turbines on the page of Smart-Cover

Learn more about invoicing

Description

Description

The Invictus SRF-MH-100 monocrystalline solar panel has a maximum power output of 100 W and a power conversion efficiency of up to 23%. Its semi-flexible construction allows installation on curved surfaces with a bend radius of up to 30°, such as boats, caravans, roofs that cannot support heavy loads, and building façades. It is waterproof, with an IP67 protection rating, and comes with connection cables and MC4 connectors.

The panel has no glass or metal frame and features mounting holes along the edges. It is 70% lighter than conventional solar panels, and its CE certification covers a test load of up to 2400 Pa.

  • Type: Monocrystalline
  • Maximum power: 100 W
  • Maximum power voltage (Vmp): 22 V
  • Maximum power current (Imp): 4.55 A
  • Open circuit voltage (Voc): 26.4 V
  • Short circuit current (Isc): 5.01 A
  • Maximum system voltage: 600 V
  • Maximum series fuse rating: 10 A
  • Cell efficiency: Over 23%
  • Cells in series: 45
  • Cell dimensions: 182 × 60.6 mm
  • Operating temperature: From -40 °C to +85 °C
  • Maximum power tolerance: From 0 to +3 W
  • Length: 966.5 mm
  • Width: 600 mm
  • Thickness: 2 mm
  • Flexibility: Semi-flexible
  • Protection rating: IP67
  • Connection: MC4 connectors and connection cables
  • Certification: CE
  • Test load: 2400 Pa

Manufacturer

See full description

Specifications

Specifications

Technical Specifications

Type
Monocrystalline
Maximum Power
100 W
Flexible
No

Dimensions

Length
966.5 mm
Width
600 mm
Thickness
2 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
