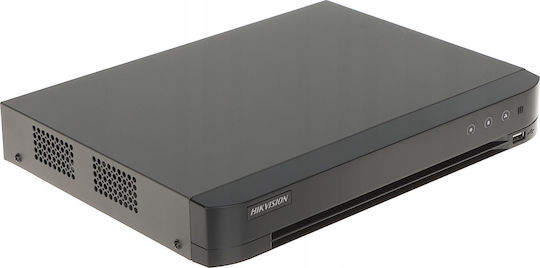

Hikvision Ids-7204huhi-m1 S A DVR Recorder 4 Channels With 4K Resolution
Surveillance Video Recorders

Hikvision Ids-7204huhi-m1 S A DVR Recorder 4 Channels With 4K Resolution

The Hikvision IDS-7204HUHI-M1 S A recorder records video from up to 4 cameras and supports resolutions up to 4K. AcuSense technology recognizes vehicles, while recording can be triggered manually, by...

The Hikvision IDS-7204HUHI-M1 S A recorder records video from up to 4 cameras and supports resolutions up to 4K. AcuSense technology recognizes vehicles, while recording can be triggered manually, by an alarm, by motion detection, or according to a schedule.

It supports AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, as well as live viewing, playback, and remote...

See full description See full description

Top specs

  • Type

    DVR

    Recorder that works with analog cameras, converting their signal to digital for storage.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

The Hikvision IDS-7204HUHI-M1 S A recorder records video from up to 4 cameras and supports resolutions up to 4K. AcuSense technology recognizes vehicles, while recording can be triggered manually, by an alarm, by motion detection, or according to a schedule.

It supports AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, as well as live viewing, playback, and remote access via Hik-Connect for Android and iOS. H.265+ video compression helps store recordings on a SATA hard drive.

  • Type: DVR
  • Number of channels: 4
  • Resolution: 4K
  • Technology: AcuSense
  • Vehicle recognition: Yes
  • Supported camera types: AHD, HD-CVI, HD-TVI, CVBS, and IP
  • Recording modes: Manual, alarm-triggered, motion detection, and scheduled
  • Remote access: Hik-Connect for Android and iOS
  • Video compression: H.265+
  • HDD bays: 1
  • Maximum capacity per drive: 10 TB
  • Network: RJ-45 10/100 Base-T

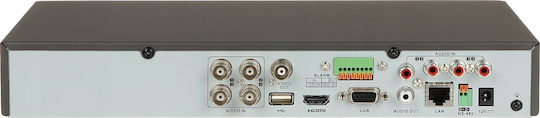

  • Ports: HDMI, VGA, CVBS (BNC), USB 2.0, and RS-485
  • Video inputs: 4 x BNC
  • Audio inputs: 4 x CINCH and 4 x BNC
  • Audio output: 1 x CINCH
  • Alarm inputs: 4
  • Alarm outputs: 1
  • Power supply: 12 VDC / 1.5 A
  • Power consumption: ≤ 10 W without HDD
  • Color: Black
  • Weight: 1.15 kg
  • Dimensions: 319 x 244 x 48 mm
  • Supported languages: Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, and Italian

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
DVR

Type

DVR
Recorder that works with analog cameras, converting their signal to digital for storage.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, Alarm Input, Alarm Output, USB

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Hikvision IDS-7204HUHI-M1 S A recorder records video from up to 4 cameras and supports resolutions up to 4K. AcuSense technology recognizes vehicles, while recording can be triggered manually, by an alarm, by motion detection, or according to a schedule.

It supports AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, as well as live viewing, playback, and remote access via Hik-Connect for Android and iOS. H.265+ video compression helps store recordings on a SATA hard drive.

  • Type: DVR
  • Number of channels: 4
  • Resolution: 4K
  • Technology: AcuSense
  • Vehicle recognition: Yes
  • Supported camera types: AHD, HD-CVI, HD-TVI, CVBS, and IP
  • Recording modes: Manual, alarm-triggered, motion detection, and scheduled
  • Remote access: Hik-Connect for Android and iOS
  • Video compression: H.265+
  • HDD bays: 1
  • Maximum capacity per drive: 10 TB
  • Network: RJ-45 10/100 Base-T
  • Ports: HDMI, VGA, CVBS (BNC), USB 2.0, and RS-485
  • Video inputs: 4 x BNC
  • Audio inputs: 4 x CINCH and 4 x BNC
  • Audio output: 1 x CINCH
  • Alarm inputs: 4
  • Alarm outputs: 1
  • Power supply: 12 VDC / 1.5 A
  • Power consumption: ≤ 10 W without HDD
  • Color: Black
  • Weight: 1.15 kg
  • Dimensions: 319 x 244 x 48 mm
  • Supported languages: Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, and Italian

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
DVR

Type

DVR
Recorder that works with analog cameras, converting their signal to digital for storage.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, Alarm Input, Alarm Output, USB

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
