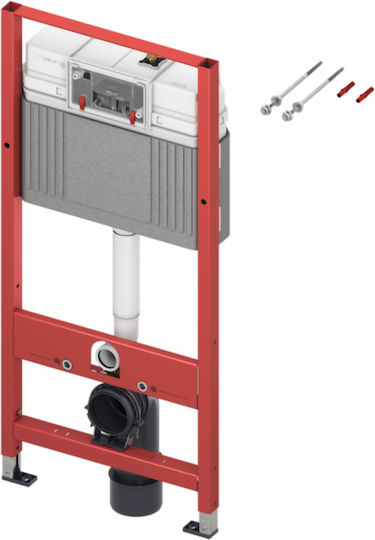

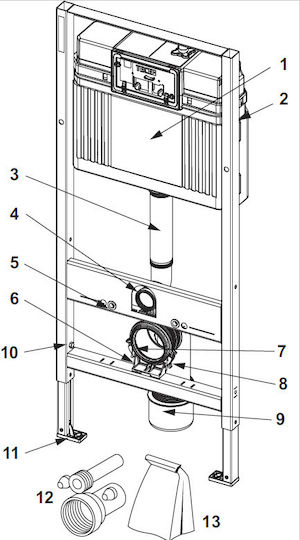

TECEbase Toilet Unit with Base Cistern, Installation Height 1120 mm
Toilet unit that includes the installation of an “easy fit” control panel. Suitable for single block assembly, as a pre-wall unit in front of solid walls, and for integration into walls with metal or wooden supports.
Base Cistern for Front Activation:
- Safety tank made of impact-resistant plastic, tested according to EN 14055
- Fully pre-assembled cistern
- Cistern connection with external thread R 1/2" on the top, compatible with quick adapters
- 3-way stop valve with flush function and installed fill valve
- Tank volume 10 liters, preset flush volume 6 liters, adjustable flush volume 4.5/7.5/9 liters, 3 liters for dual flush system
- Insulated against condensation
- For TECE control panels and toilet flush handle
- Can be used as single or dual flush cistern
- “easy fit” control panel installation
- Low-noise hydraulic fill valve, fitting group 1 according to DIN 4109
Unit Frame:
- Self-supporting, powder-coated
- Two M12 retaining bolts and nuts
- Support set for solid walls
- Toilet drainage curve DN 90 with DN 90/100 connector, made of PP
- Connector suitable for horizontal installation as well
- Toilet connection set DN 90, includes protective plug
Order Separately:
- Toilet control panel
- Intake funnel for cleaning tablets (optional)
- TECEone upgrade set for dry wall construction
- Installation/finishing set for connecting an electronic toilet shower
Note: If using toilet ceramics with a reduced support surface - e.g., V & B Memento, Sentique, Subway 2.0 - installation of the steel reinforcements set 9041029 in the lower construction area is required.
