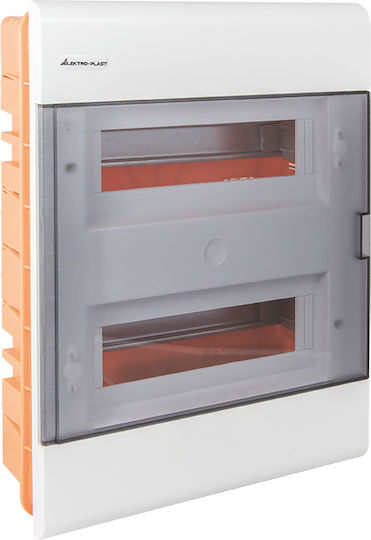

Modular distribution board SRP-24 2x12 flush-mounted IP40 - 2.5

The distribution boards are made of high-quality plastic and are suitable for use in indoor environments under moderate climatic conditions. Installation is allowed in unheated areas with temperature fluctuations.

The distribution boards have a closed box housing with embossed side parts for easy input of cables, pipes, and installation trays. They are equipped with descriptive labels for identifying the installed devices and are suitable for sealing.

The mounting element in the distribution board is the TH 35/7.5 (Eurorail) bracket, which allows the installation of surge protection devices like MCBs, residual current circuit breakers (RCD), and RCBs, as well as other electrical devices.

• Color: White
• Type/Units per row: 2 x 12
• N+PE terminals: Yes
• Dimensions: 298 x 397 x 84 x 20 mm
• Installation method: Flush-mounted
• Casing material: Plastic
• Protection level: IP40
• Expandable: No
• Width [mm]: 298
• Depth [mm]: 84
• Height [mm]: 297
