Specifications

Number of Channels Outputs

4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder

Resolution

4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

WiFi

No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)

Number of POE

12

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).

Gigabit Port

No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.

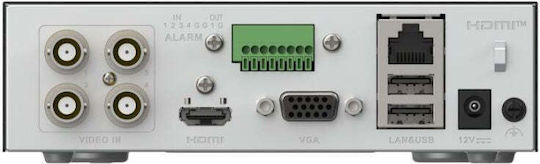

Ports

HDMI, VGA, USB, PoE

Ports

HDMI

The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

VGA

An analog video output. Used to connect the recorder to older computer monitors.

USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

ONVIF

No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

Video Compression

H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

• The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection

Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.

Vehicle Detection

Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

Maximum Capacity per Disk

1 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

Includes Hard Drive

No
