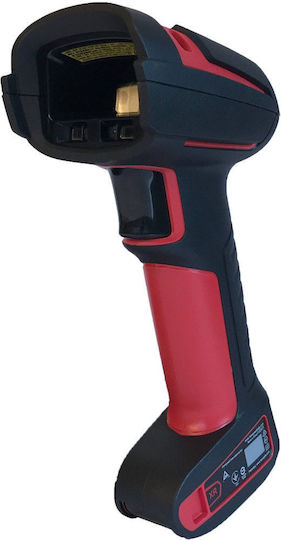

Type: 2D Barcode

Reading mode: 1D/2D Area Imager (1280 x 800 pixel array)

Scan Range/ Depth of Field:

• 5mil Code 39: 20 mm to 220 mm
• 13 mil UPC: 0 mm to 504 mm
• 20 mil Code 39: 0 mm to 837 mm
• 6.7 mil PDF 417: 20 mm to 209 mm
• 10 mil Data Matrix: 30 mm to 220 mm

Scan Range/ Field Width: Scan Angle: Focus ER: Horizontal: 40 °/ Vertical: 30°. Pitch, Skew: -360°, 45°, 65°

Resolution: 1D Code 39: 3 mil (0.076 mm), 2D Data Matrix: 6 mil (0.152 mm)

Dimensions:

• Scanner: 192 x 76 x 100 mm

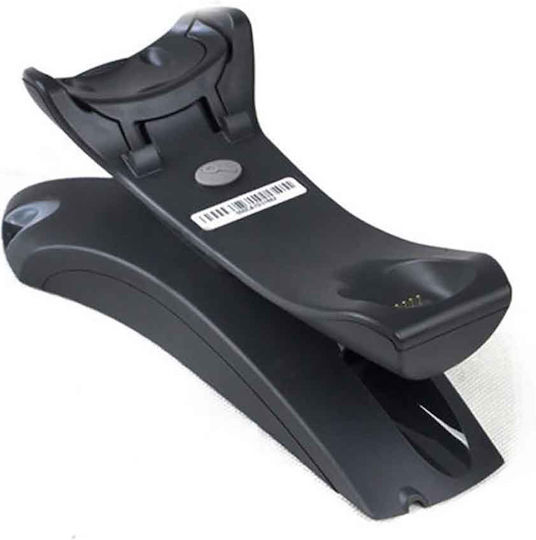

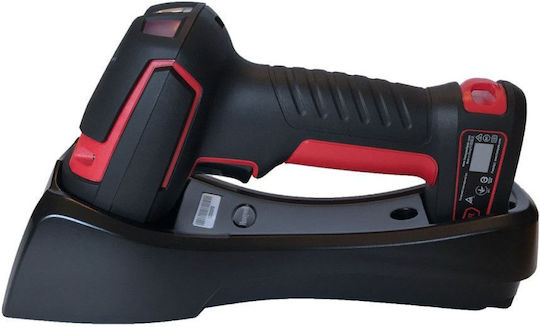

• Base: 245 x 102 x 60 mm

Weight: 405 gr

Ambient Light: 100,000 lux

Sealing: IP65 / IP67

Symbols: Reads 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR

Additional features:

• Voltage: 4.0V DC to 5.5V DC
• Operation: 5 W (470 mA @ 5V DC)
• Standby: 0.5 W (1000 mA @ 5VDC)
• Battery: 2450 mAh Li-ion
• 50,000 scans per charge
• Expected operating time: 14 hours (1 scan per second)
• Operating temperature: -20°C

Factory Code: 1991iSR-3USB-5-R
