GRsistemi Set Garage Door Motor for Sliding Door for Maximum Weight 400kg
Garage Door Motor Set

GRsistemi Set Garage Door Motor for Sliding Door for Maximum Weight 400kg

The GRsistemi GR4-e4 FULL KIT motor set automates sliding garage doors with a maximum weight of 400 kg. The electromechanical mechanism uses permanently lubricated grease and is non-reversible, while...

The GRsistemi GR4-e4 FULL KIT motor set automates sliding garage doors with a maximum weight of 400 kg. The electromechanical mechanism uses permanently lubricated grease and is non-reversible, while the motor has a power rating of 190 W and a leaf travel speed of up to 10 m/min. The set includes an electronic control board, two remote controls, safety...

See full description See full description
265 00 €
Delivery by Thu, 12 Nov
26,00 €   shipping cost
Sent from Greece
From NextSystems
Greece
20+ pieces
See Garage Door Mechanisms on the page of NextSystems

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Product report

Description

Description

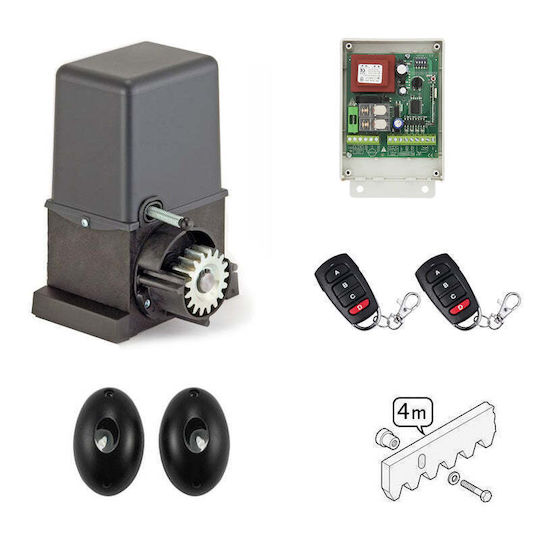

The GRsistemi GR4-e4 FULL KIT motor set automates sliding garage doors with a maximum weight of 400 kg. The electromechanical mechanism uses permanently lubricated grease and is non-reversible, while the motor has a power rating of 190 W and a leaf travel speed of up to 10 m/min. The set includes an electronic control board, two remote controls, safety photocells and a 4 m metal rack with spacers.

  • Motor type: Sliding garage door
  • Maximum door weight: 400 kg
  • Maximum door length: 4 m
  • Motor power: 190 W
  • Operating voltage: 230 VAC, single-phase
  • Supply current: 1.1 A
  • Motor speed: 1400 rpm
  • Capacitor capacity: 8 μF
  • Mechanism type: Electromechanical, with permanently lubricated grease and non-reversible
  • Gears: Internal and external metal gears
  • Maximum duty cycle: S3-15% at 20°C
  • Opening and closing cycles per hour: Up to 15 for a reference door length of 5 m at 20°C
  • Maximum door leaf speed: 10 m/min
  • Maximum thrust: 390 N
  • Torque: 13.6 Nm
  • Gear type: Z17 / m4, 17 teeth / module 4
  • Limit switches: Mechanical, with microswitches and spring
  • Manual release: Key-operated
  • Operating temperature: From -25°C to +60°C
  • Protection rating: IP-55
  • Thermal protection: 150°C
  • Control board: 1 unit, R2010D
  • Remote controls: 2 units, e4
  • Safety photocells: 1 set of wired photocells with transmitter and receiver, AGO-20
  • Rack: 4 m, metal, module 4, with spacers and screws
  • Package contents: 1 GR4 motor, 2 manual release keys, 4 galvanized screws, 4 galvanized washers, 1 metal mounting base, 2 metal plates for the limit switches, 1 8 μF capacitor, 1 R2010D control board, 2 e4 remote controls, 1 set of AGO-20 safety photocells, 4 m metal rack with spacers and screws, 2 user manuals
  • Motor dimensions: 235 × 205 × 310 mm, excluding the mounting base
  • Motor weight: 8 kg
  • Packaging: Cardboard box
  • Country of manufacture: Italy
  • Certification: CE
