The SW400-KIT-8 bi-fold swing garage door motor set is a complete system for automating swinging gate doors with 2 leaves. It is economical, powerful, and easy to install.

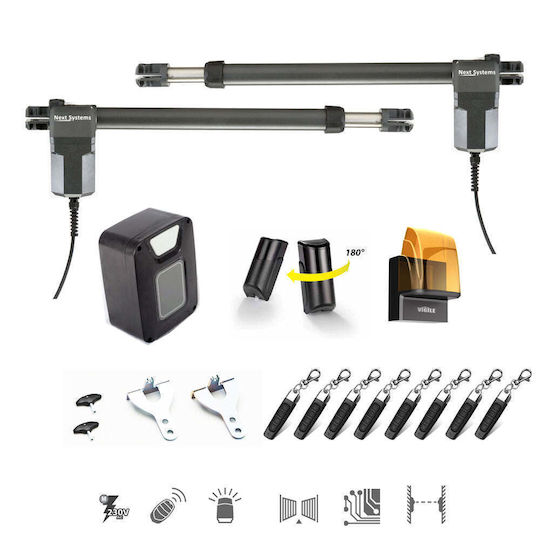

The set includes:

• 2 x SW400 arms (1 right D & 1 left S) 330Watt each (linear mechanisms with permanent lubrication)
• 1 x S7-150 control panel with a waterproof plastic box
• 8 x Wiz wireless remote controls
• 1 x set (transmitter and receiver) of wired safety photocells VG-PC-2
• 1 LED operation notification light VG-LED
• Mounting brackets and pegs for the motors
• 2 capacitors 8μF
• 2 release keys
• Installation instructions in Greek

The motors are manufactured by the Italian company GR SISTEMI AUTOMATICI and have proven their reliability and durability. Each motor can move a leaf up to 3m wide with suitable installation geometry.

Technical Specifications:

• Product code: SW400
• Power supply voltage: 230 Vac - Single-phase alternating current
• Power supply current: 0.9A
• Motor power consumption: 330Watt
• Maximum leaf weight: 250kg
• Maximum force: 2200N
• Maximum opening angle: 120°
• Operating temperature range: from -25ºC to 60ºC
• Degree of protection against dust and moisture: IP43
• Set weight: 15kg
• Box dimensions (set): 775mm x 235mm x 125mm
